CHASSIS:
Ford T350 HD Dual Rear Wheel Transit Cutaway Chassis, 11,000 GVWR, 156" Wheelbase
3.5 liter, EcoBoost® V6 gasoline engine, 310 horsepower @ 5.000 RPMs and 400 lb.-ft. of torque at 2,500 rpm
10-Speed Automatic Overdrive with SelectShift®
Ford Factory Extra Heavy Duty 250 AMP Alternator
Dual AGM Batteries (70 amp-hr each)
Dual Rear Wheels for Passenger Safety
Suspension, Rear - Leaf Springs, Heavy-Duty Gas Shock Absorbers
AdvanceTrac® with Roll Stability Control™ (RSC®)
Heavy-Duty Front Axle
Suspension, Front - Independent MacPherson-strut, Stabilizer Bar
4-wheel anti-lock disc brakes
Steering - Power Rack and Pinion
Tires 205/75R16C 113/111 BSW all-season
Fuel Tank - Capless fuel fill, 25 gallons (midship)

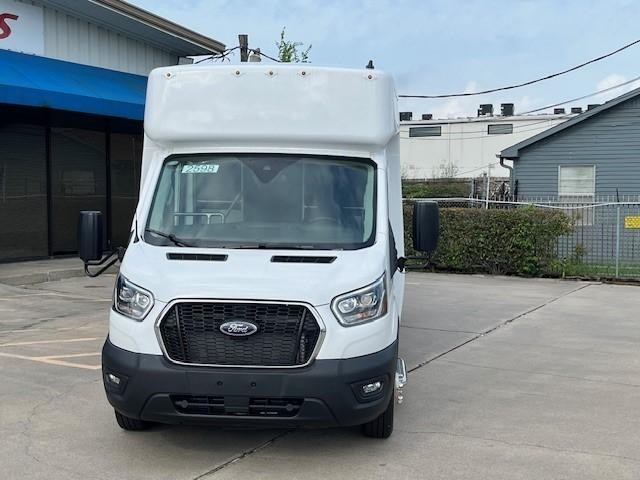

Grille, Honeycomb Mesh Grille with Carbon Black Surround

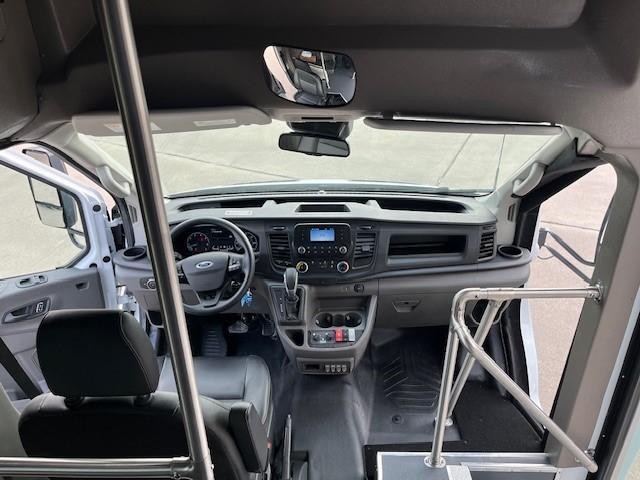

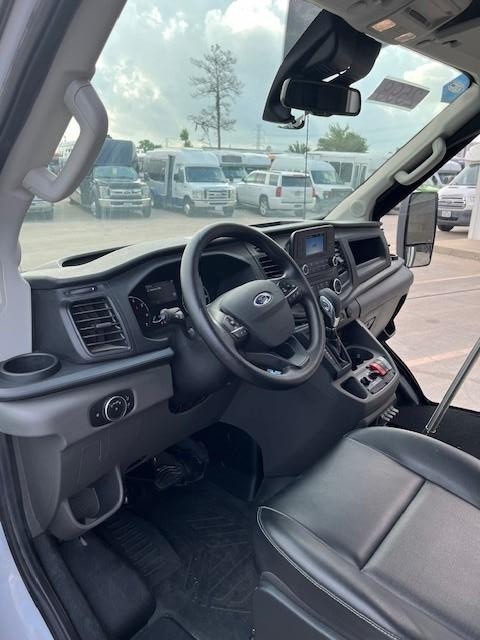

Steering Wheel - Tilt & telescopic column polyurethane 4-spoke wheel
Adaptive Cruise Control with Adjustable Speed Limiting Device (ASLD)
Automatic Rain-Sensing Windshield Wipers
Electric Power-Assisted Steering (EPAS)
Door Locks, Auto-locking Drive Away with Crash Unlocking.
SecuriLock® Passive Anti-Theft System (PATS) with engine immobilizer
Pre-Collision Assist with Automatic Emergency Braking (AEB)
Forward Collision Warning
Lane-Keeping System
Floor Covering, Vinyl - Front
Glove Box (Locking)
Instrumentation - Tachometer, Fuel Level and Coolant Temperature
AM/FM Stereo with 4" Display, Bluetooth, and Dual USB Ports
Daytime running lamps
Cab floor covering vinyl, black
Engine console cover with dual bin stowage / 3 cup holders
PowerPoints - Dual 12-volt in instrument panel, single in glove box
DIAMOND BODY:
Vacuum-Cured composite body, Impact resistant & non-corrosive
Oxford white exterior w/ durable gel coat finish
Superior insulation within the laminated sidewalls
Non-corrosive composite passenger entry stepwell & wheel wells
Seat track mounted in floors and sidewalls for adjustable passenger seats
¾" sealed & undercoated exterior grade plywood floor

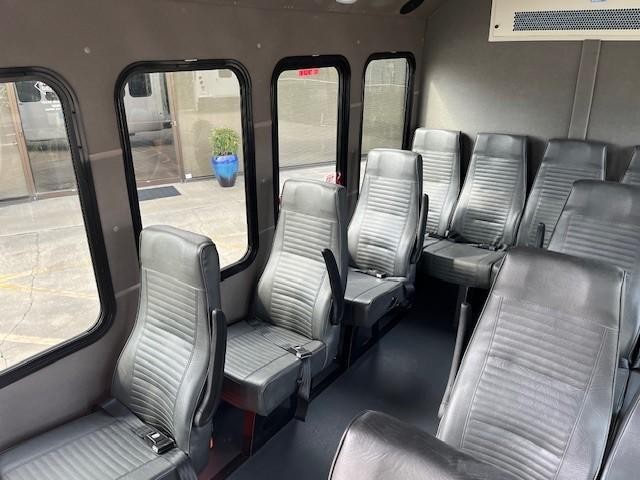

24" wide x 36" high upper T-Slider tempered safety glass windows with climate control tint, (positioned at each row)
Black powder coated steel rear bumper

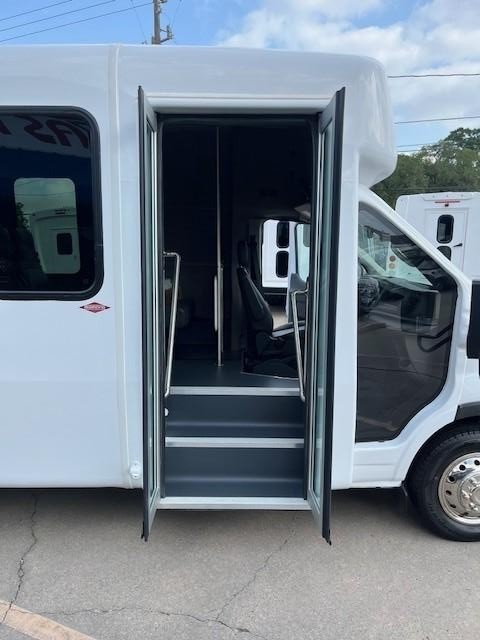

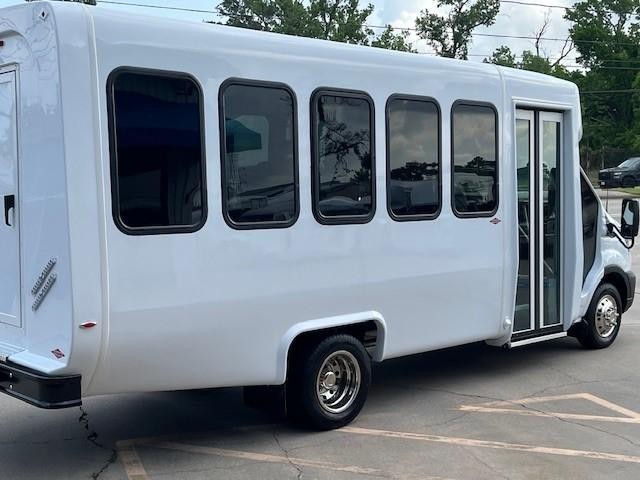

Electrically operated passenger entry door with full length glass (32" clear width, 80" height)
Light Emitting Diode (LED) sealed lighting; stop, tail, turn signal lights with reverse lights and exterior passenger entry door light
Electrical panel protected with automotive type fuses, Colored coded wiring
Contoured styled exterior driver mirrors w/ convex lens in a resin injection-molded housing.
White step safety nosing on entry steps
Durable ABS headliner and sidewall panels
Interior Light Emitting Diode (LED) courtesy lights
Left hand entry hand rail in step well, stanchions & modesty panel
Easy access driver control console, located for safety
AIR CONDITIONING & HEATING:
Rear Air Conditioning system rated at 70,000 BTU’s with:
- Dual compressors, Chassis supplied plus an auxiliary 10 CID compressor dedicated to rear system
- 3 fan skirt mounted condenser unit rated at 76,000 BTU’s

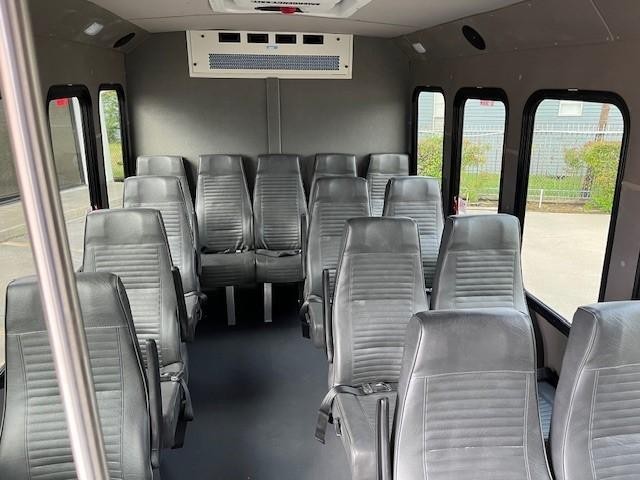

- Rear in-wall evaporator rated at 52,000 BTU’s/1,330 CFM
Rear floor heater rated at 70,000 BTU’s
GENERAL & SAFETY FEATURES:
Enhanced rear suspension system, Timbren
Exhaust run to driver side

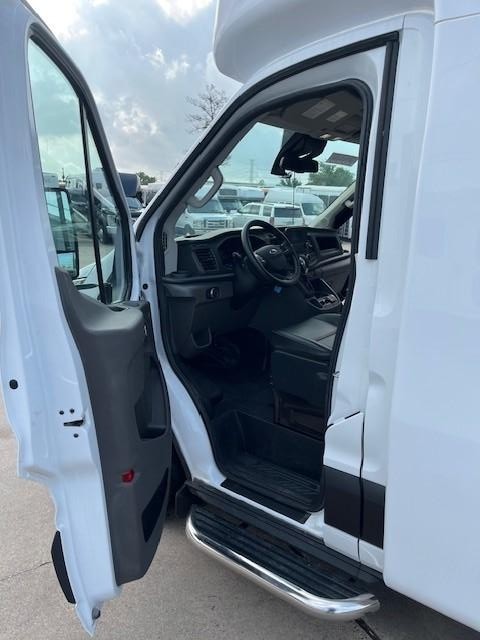

Driver’s running board
Front & rear mud flaps
Color coordinated high slip résistance transit grade floor covering, Gerfloor Siris Anthracite
Modesty panel, mounted behind the driver’s seat

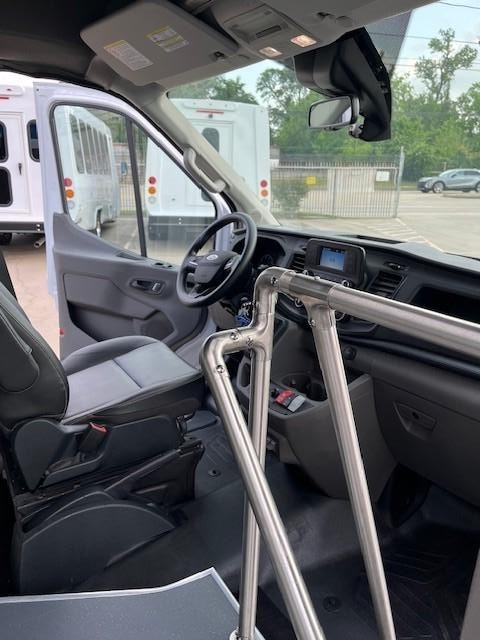

Right hand entry handrail
Driver’s passenger view mirror, 6" x 9" convex
Light-emitting diode (LED) center mount brake light

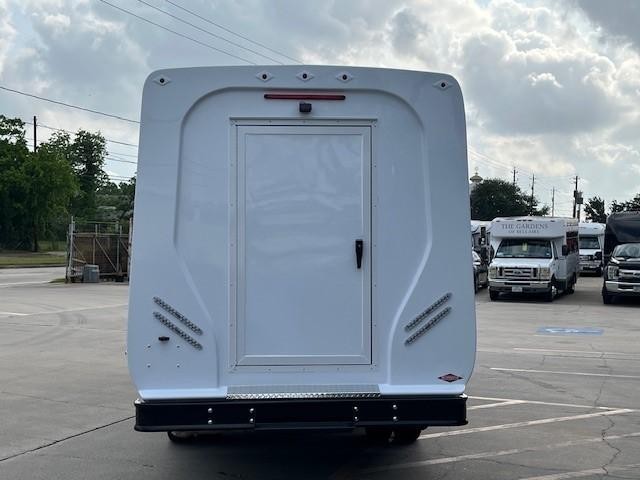

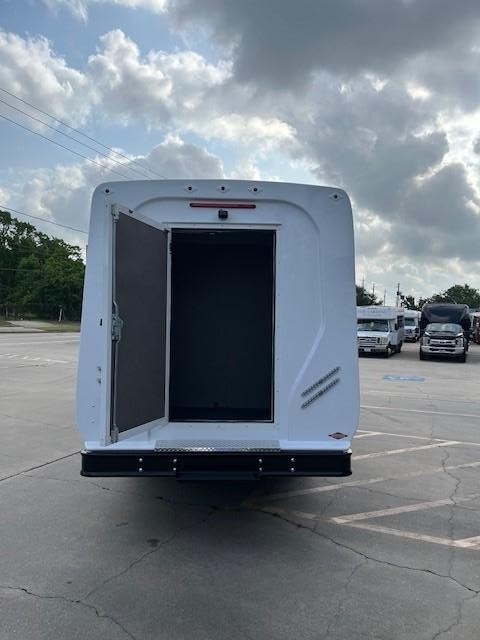

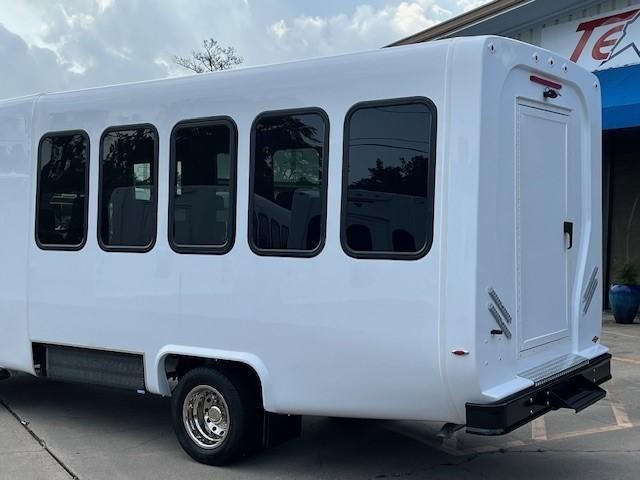

Dedicated rear luggage compartment, with heavy duty door
Reverse alarm
Rear View Camera located in rear view mirror
Fire extinguisher & Reflector kit
Remote controlled contoured styled exterior Rosco mirrors w/ convex lens
Stainless steel chrome wheel simulators
SEATS & ACCESSORIES:

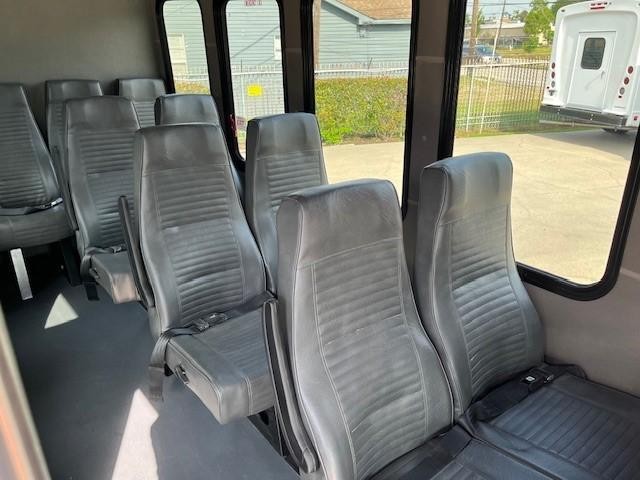

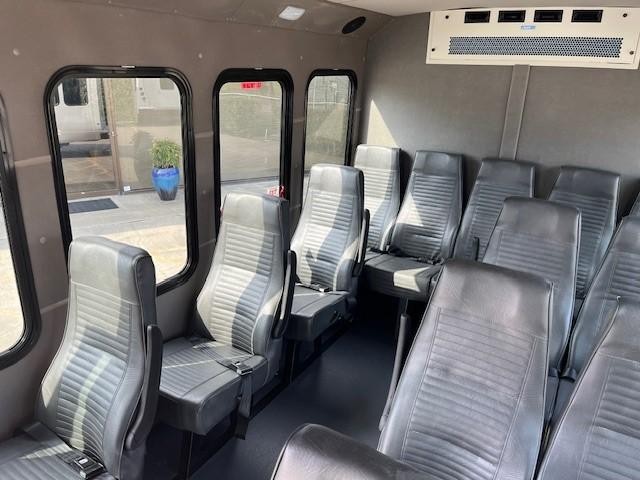

High back double passenger seats with:
- Commercial grade vinyl, Level 1 - Newport Ash Gray Vinyl #686
- Non-retractable
- Slim line, flip up armrests, aisle side
- Reclining seat backs, per passenger, excep
