CHASSIS:

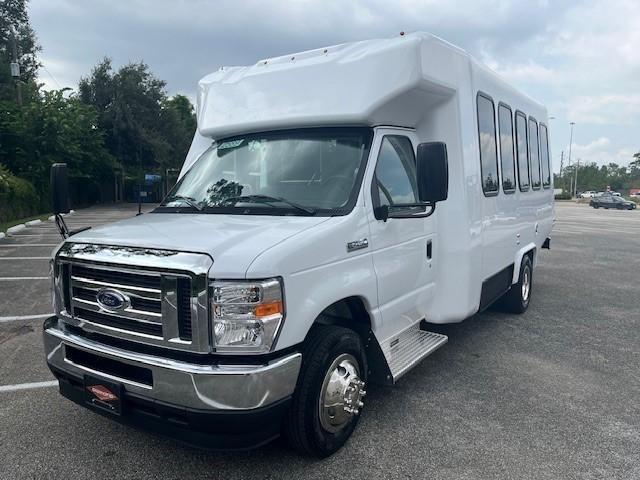

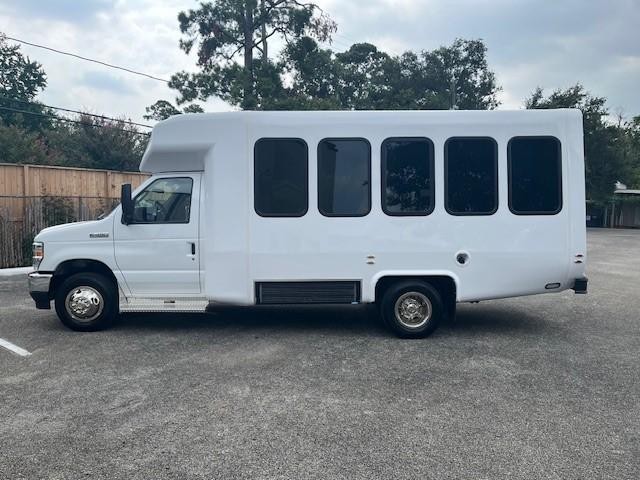

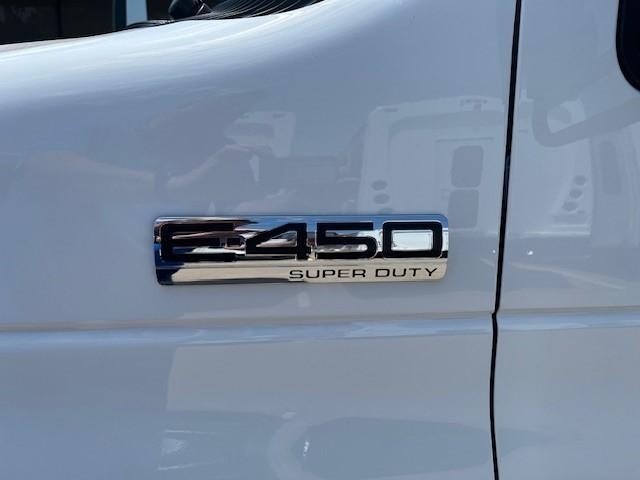

Ford Dual Rear Wheel Cutaway Chassis, 12,500 GVWR, 158" Wheelbase
7.3 liter, V8 gasoline engine, 350 horsepower @ 3.900 RPMs and 468 lb.-ft. of torque at 3,900 rpm
Electronic 6-Speed Automatic TorqShift™ transmission w/ overdrive & external cooler
Ford Factory Extra Heavy Duty 240 AMP Alternator
Premium electronic AM/FM stereo, digital clock, audio input jack (mounted in dash)

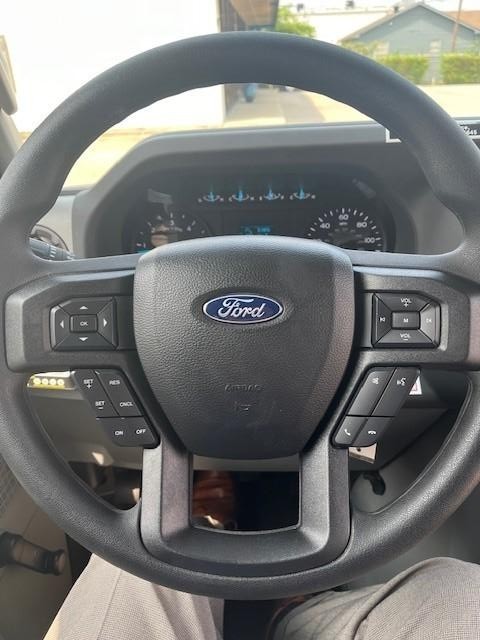

Tilt Steering Wheel & Cruise Control System
Windshield Wiper with Deluxe Intermittent Controls
Daytime running lamps
Engine console cover with dual bin stowage / 3 cup holders
DIAMOND BODY STANDARD FEATURES:

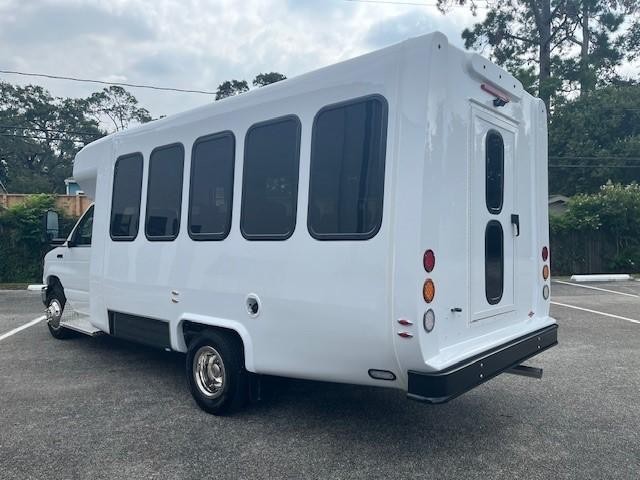

Vacuum-Cured composite body, Impact resistant & non-corrosive
Oxford white exterior w/ durable gel coat finish
Superior insulation within the laminated sidewalls
24" wide x 36" high tempered safety glass windows with climate control tint, (positioned at each row)

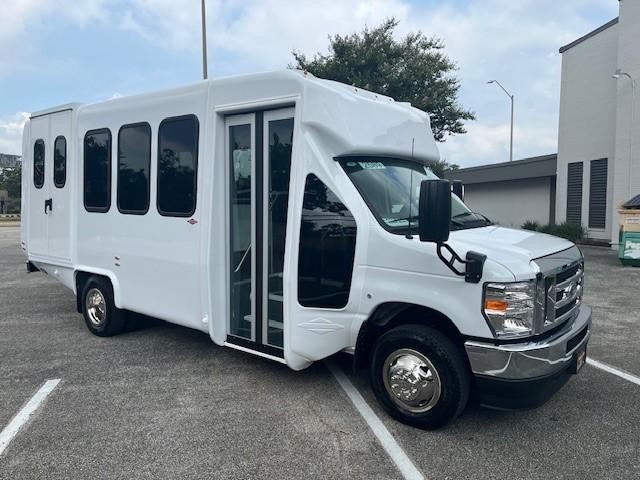

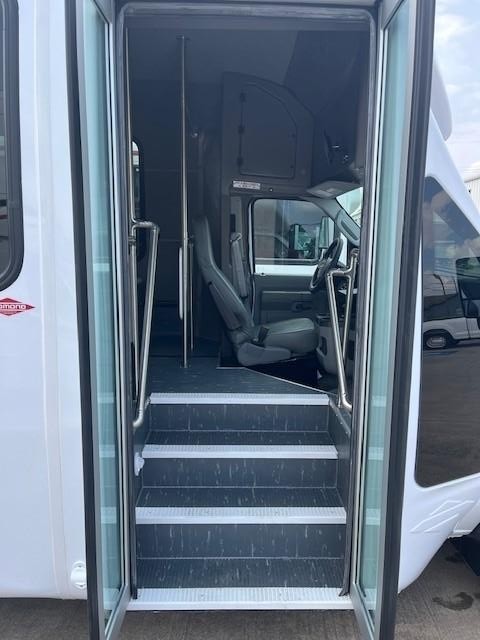

Electrically operated passenger entry door with full length glass (32" clear width, 80" height)
Non-corrosive composite passenger entry stepwell & wheel wells
5/8" sealed & undercoated exterior grade plywood floor
Light Emitting Diode (LED) lighting
Light Emitting Diode (LED) exterior passenger entry door light
Electrical panel protected with automotive type fuses, Colored coded wiring
AIR CONDITIONING & HEATING:
Rear Air Conditioning system rated at 70,000 BTU’s with:
> Dual compressors, Chassis supplied plus an auxiliary 10 CID compressor dedicated to rear system
> 3 fan skirt mounted condenser unit rated at 76,000 BTU’s
> Rear evaporator rated at 52,000 BTU’s/1,330 CFM
Rear floor heater rated at 35,000 BTU’s
GENERAL & SAFETY FEATURES:
Flat floor with no wheel wells, (This option allows unrestricted w/c locations)
Timbren Suspension Enhancement (This option automatically adjust to variable loads and road conditions)

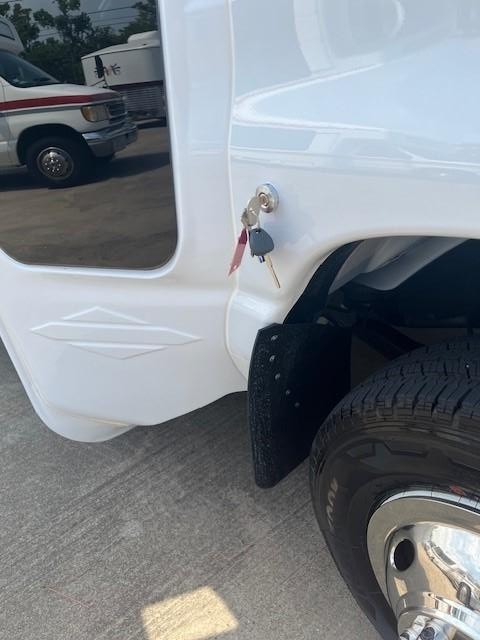

Kubota exterior key lock for passenger entry door

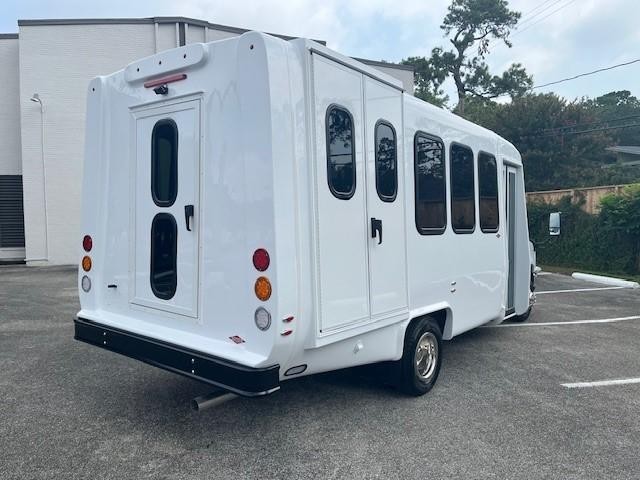

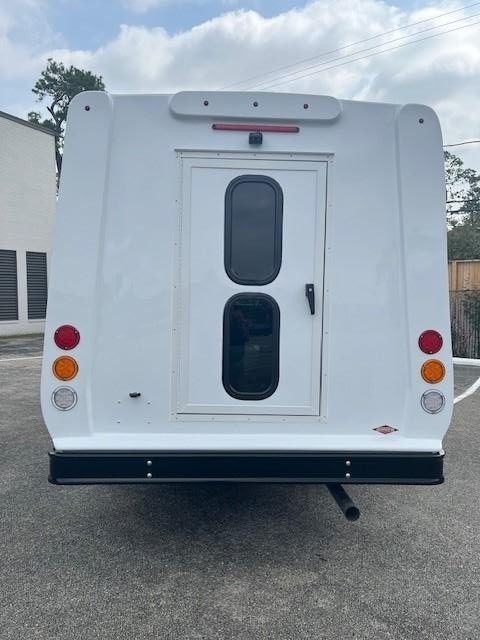

Heavy duty rear door with upper window, (34" x 60") w/Rear door, ajar buzzer

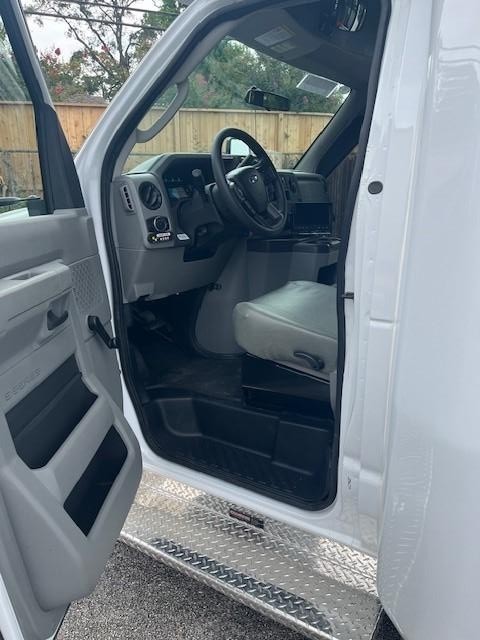

Driver’s 10 inch wide running board
Front & Rear mud flaps
Color coordinated gray high slip résistance transit grade floor rubber, In lieu of Black
Cove molding, floor rubber that rolls up sidewall to seat rail

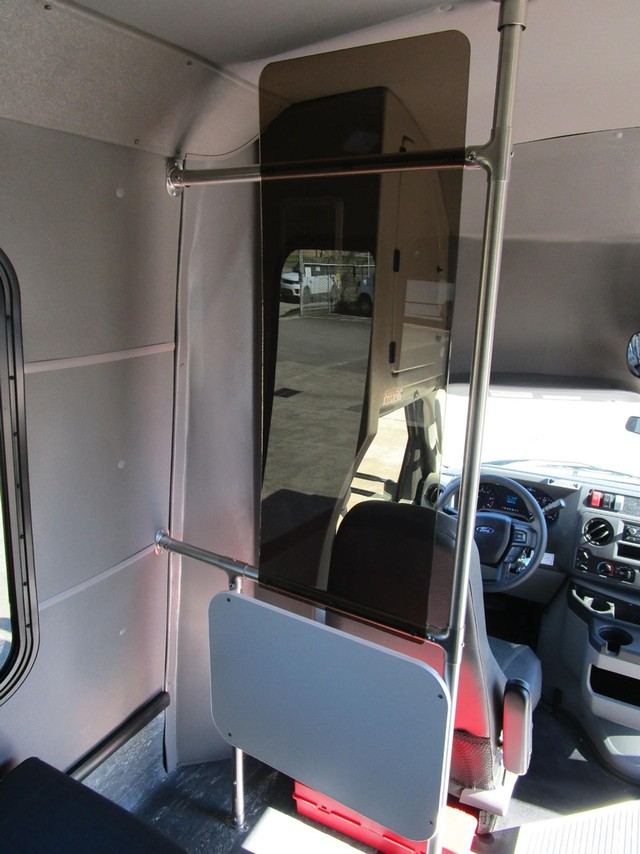

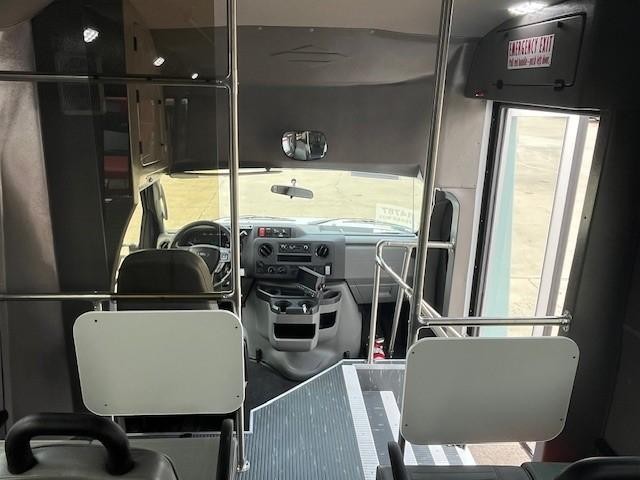

Plexiglas modesty panel, mounted above the driver’s seat
Modesty panel, mounted behind the driver’s seat
Overhead handrail
Right hand entry assist vertical handrail, dual entry grabrails parallel to entrance door steps

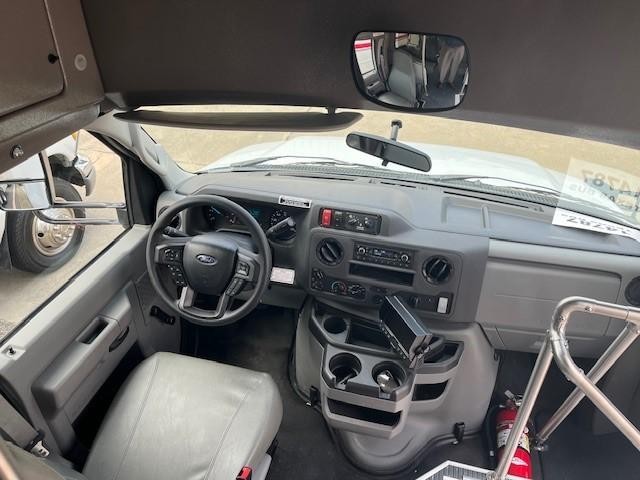

Driver’s passenger view mirror, 6" X 16" Interior Rear Full View
Wheelchair lift door ajar buzzer

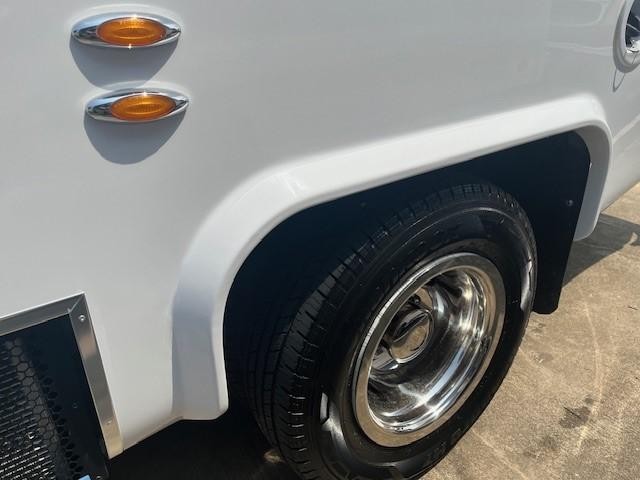

Light Emitting Diode (LED) side marker & side turn signals
Rear docking lights, skirt mounted
Center mounted brake light
Driver’s storage compartment: over Driver’s seat
Reverse alarm

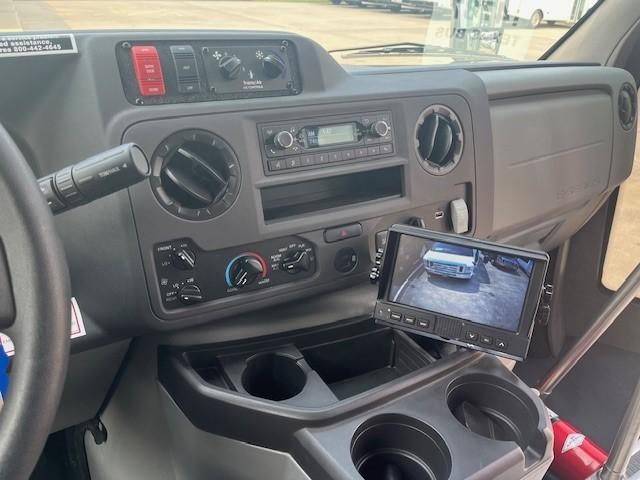

7.0 LCD backup color camera monitor
Fire extinguisher & reflector kit
Spare tire & wheel shipped loose, Hankook LT225/75R16
Stainless steel chrome wheel simulators
SEATS & ACCESSORIES:

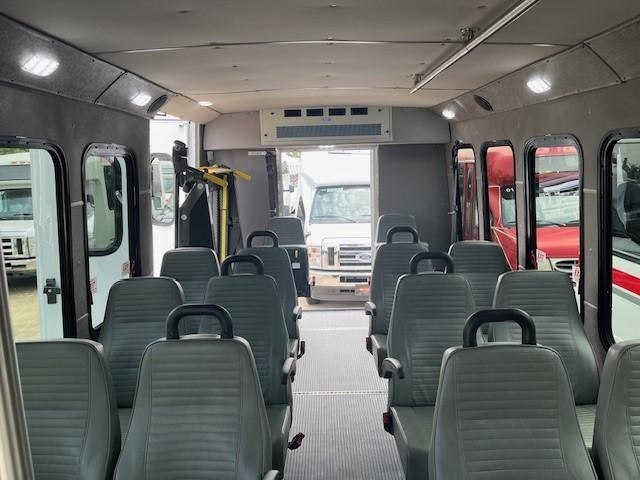

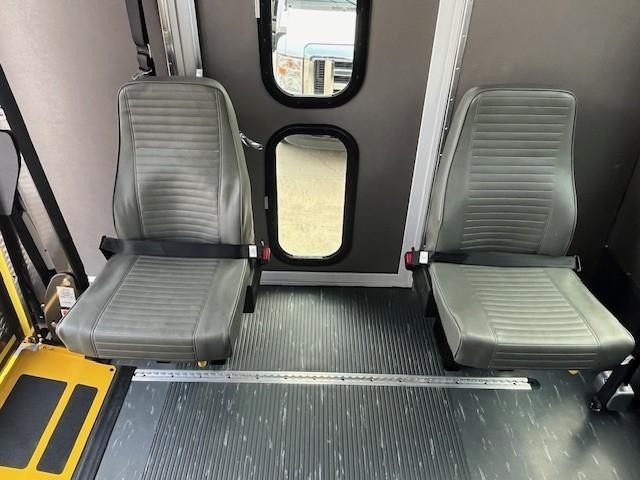

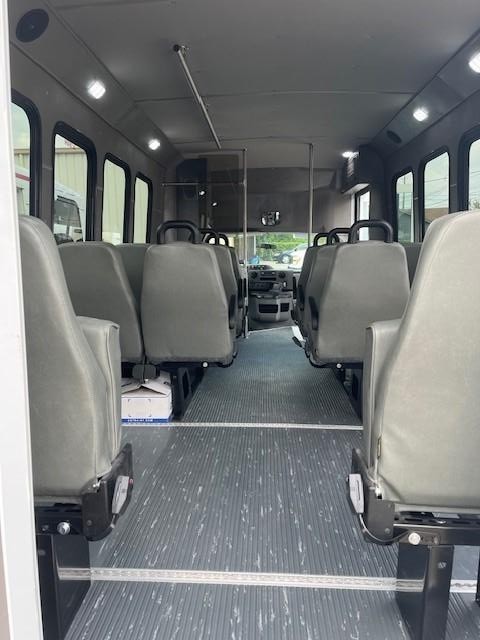

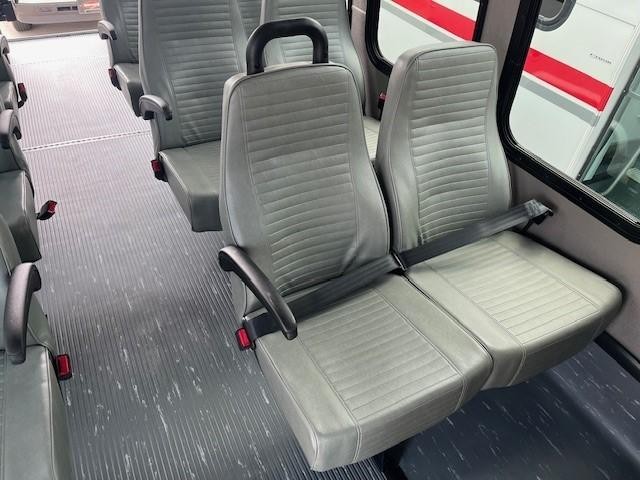

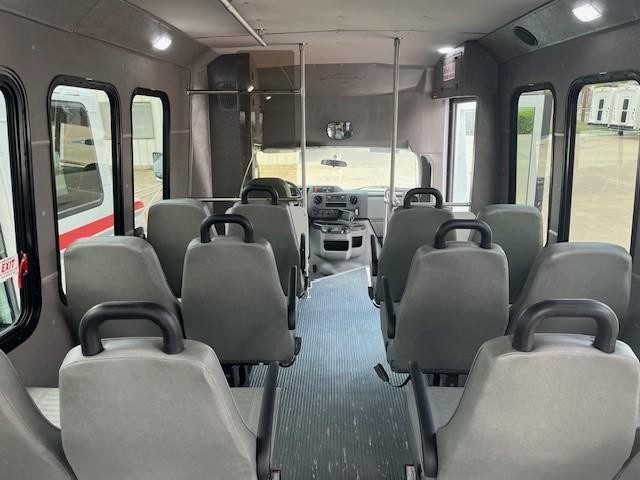

Mid back passenger seats with:
> Single passenger flip seat, located over each wheelchair position
> Commercial grade vinyl, Level 1 - Newport Ash Gray Vinyl #686
> Seat belts, retractors w/seatbelt loops
> Slim line, flip up armrests, aisle side
> Padded grab handles, aisle side seats
High back reclining driver’s seat w/ armrest
PARATRANSIT: ADA compliance features

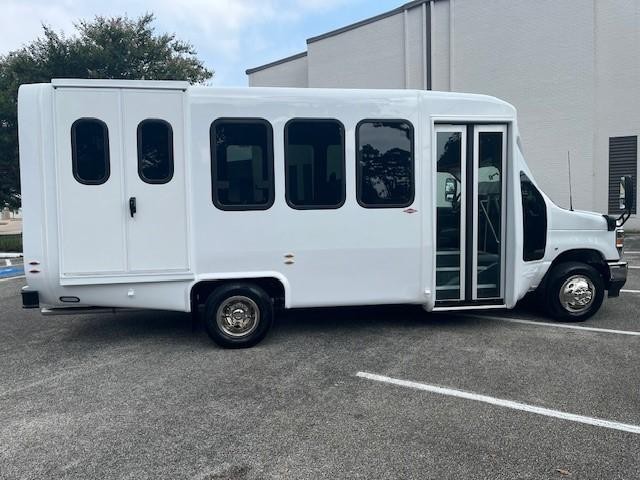

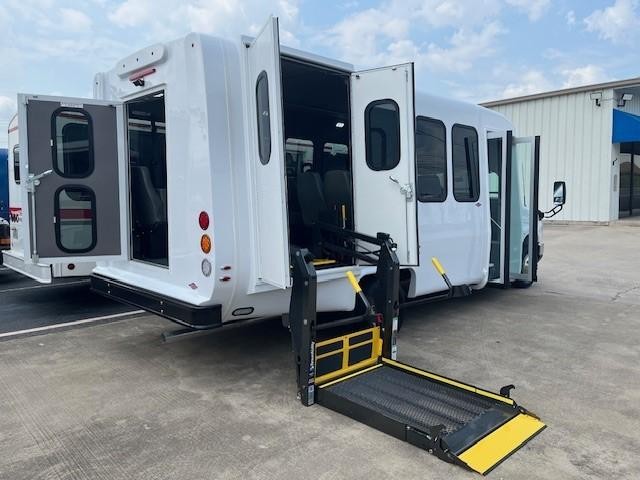

Heavy duty double outward opening wheelchair lift door 48" x 72"

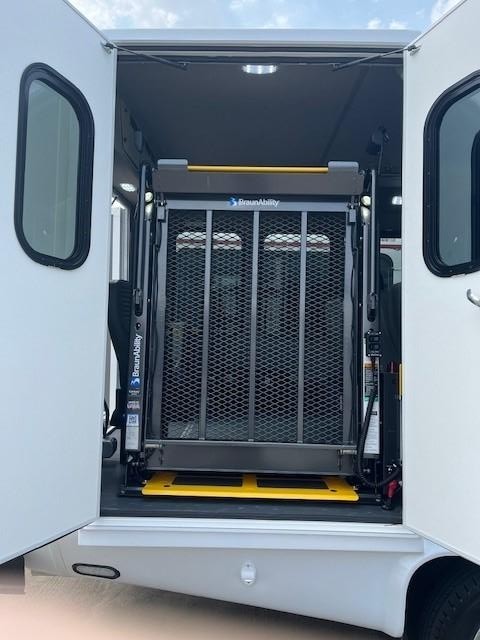

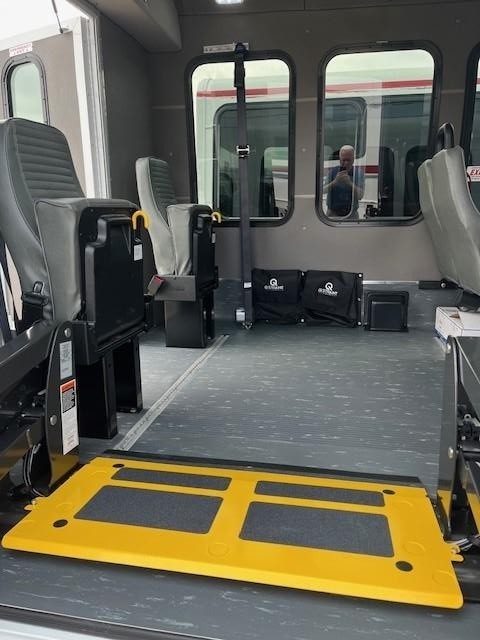

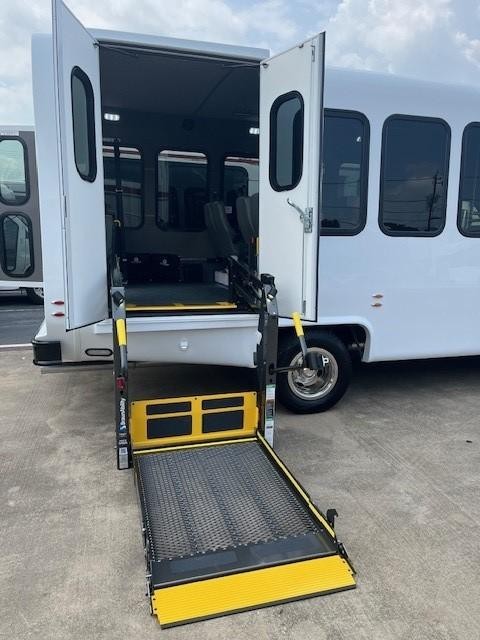

Fully automatic Braun Century wheelchair lift w/ 34" wide platform

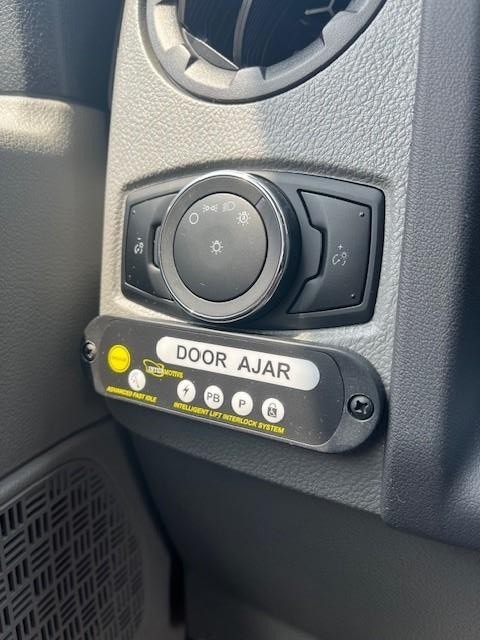

Transmission interlock included in fast idle module
Two (2) Q-Straint four (4) point wheelchair securement tie downs
Track for wheelchair securement tie downs
LED Interior light, that illuminates the wheelchair lift area
Skirt mounted LED light that illuminates the wheelchair lift area
Exterior passenger entry door light
