CHASSIS:

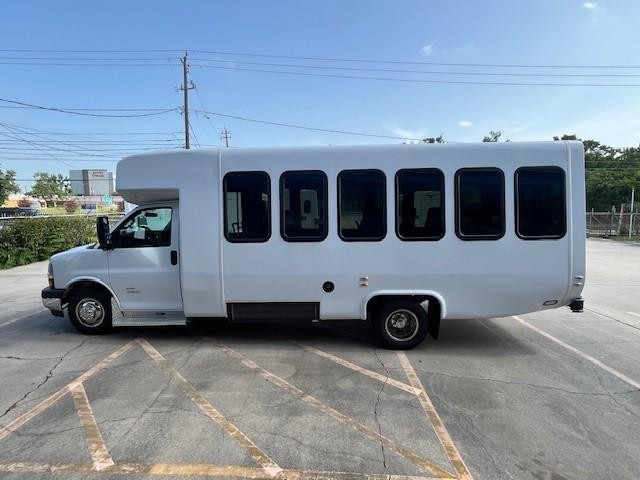

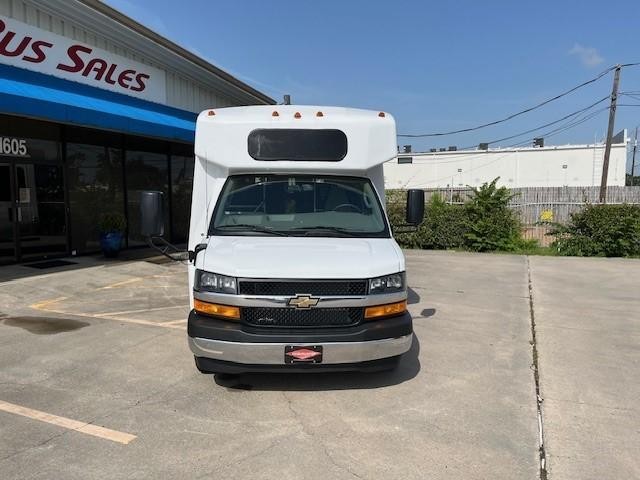

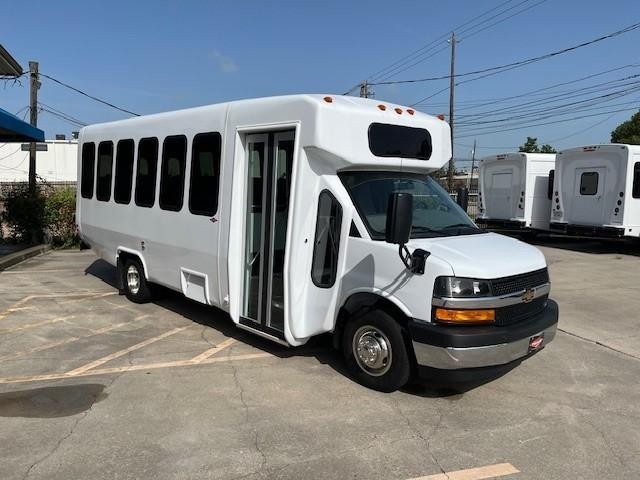

Chevrolet Express Cutaway 4500, 177" wheelbase, 14,200 GVWR
6.6 liter, V8 gasoline engine, 401 horsepower @ 5.200 RPMs and 464 lb.-ft. of torque at 4,000 rpm
Electronic 8-Speed Automatic electronically controlled transmission w/ Tow/Haul mode
Chevrolet heavy duty 150 AMP Alternator
OEM AM/FM/CD stereo radio (mounted in dash) with 2 speakers in cab
Tilt-wheel and cruise control
Windshield Wiper with Deluxe Intermittent Controls
Daytime running lamps

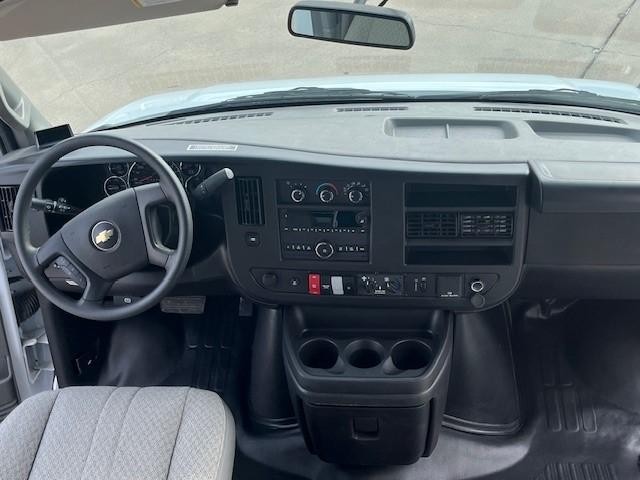

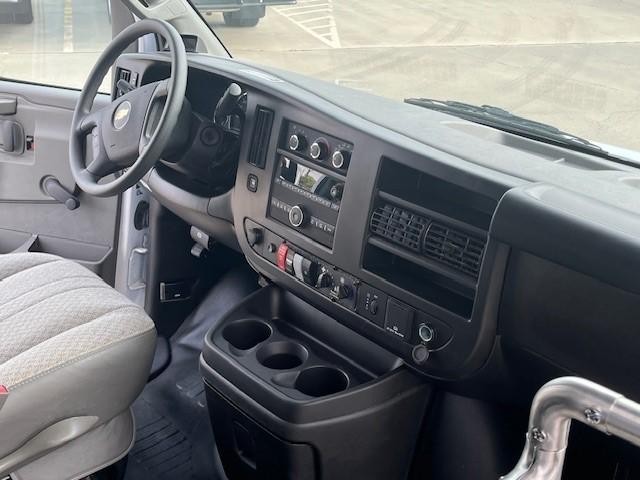

Engine console cover with dual bin stowage & cup holders
DIAMOND BODY STANDARD FEATURES:
Vacuum-Cured composite body, Impact resistant & non-corrosive
Oxford white exterior w/ durable gel coat finish
Superior insulation within the laminated sidewalls
24" wide x 36" high tempered safety glass windows with climate control tint, (positioned at each row)

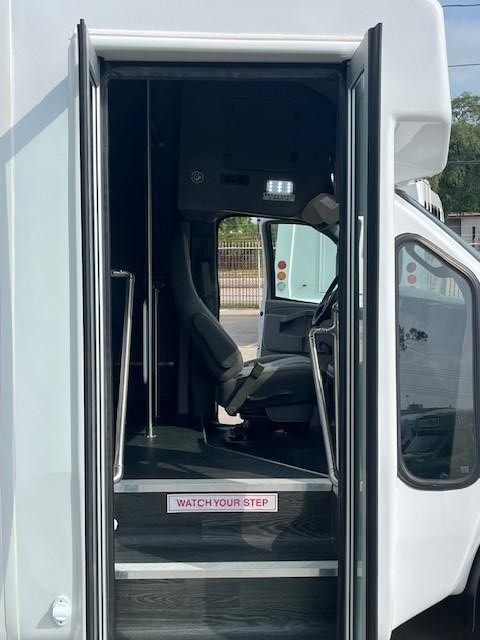

Electrically operated passenger entry door with full length glass (32" clear width, 80" height)
Non-corrosive composite passenger entry stepwell & wheel wells
5/8" sealed & undercoated exterior grade plywood floor
Light Emitting Diode (LED) lighting
Light Emitting Diode (LED) exterior passenger entry door light
Electrical panel protected with automotive type fuses, Colored coded wiring
AIR CONDITIONING & HEATING:
Rear Air Conditioning system rated at 70,000 BTU’s with:
> Dual compressors, Chassis supplied plus an auxiliary 10 CID compressor dedicated to rear system
> 3 fan skirt mounted condenser unit rated at 76,000 BTU’s
> Rear evaporator rated at 52,000 BTU’s/1,330 CFM
Rear floor heater rated at 35,000 BTU’
GENERAL & SAFETY FEATURES:
Enhanced rear suspension system, Timbren
Upgraded 3/4" marine grade plywood subfloor
Skyview window over windshield
InterMotive high idle control

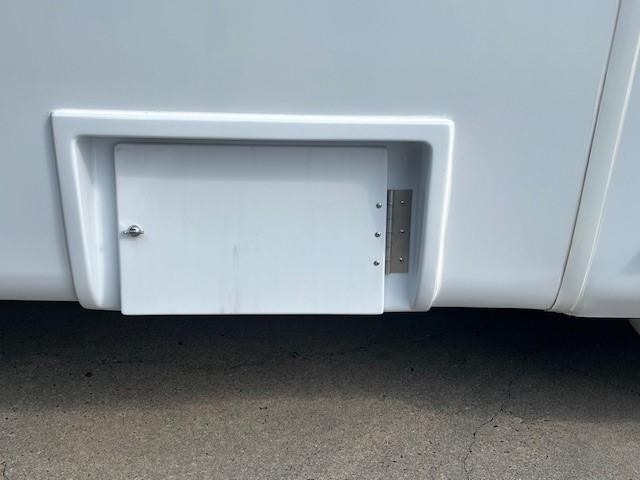

Exterior battery compartment w/ slideout tray (located in skirt for easy access)
Battery disconnect switch, Rotary switch mounted adjacent to the electrical control box
Remote controlled contoured styled exterior Rosco mirrors w/ convex lens

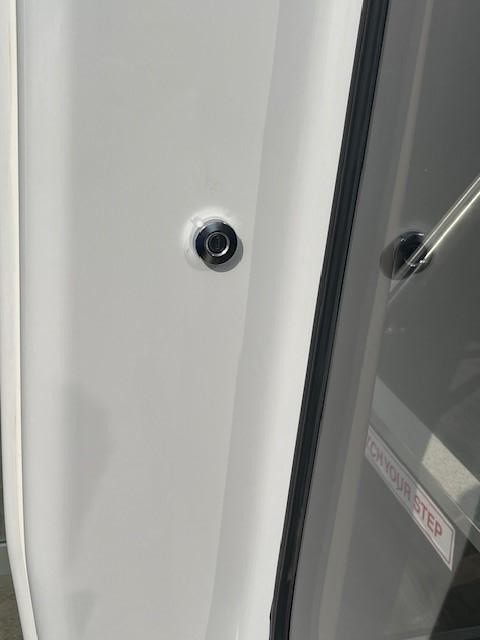

Kubota exterior key lock for passenger entry door

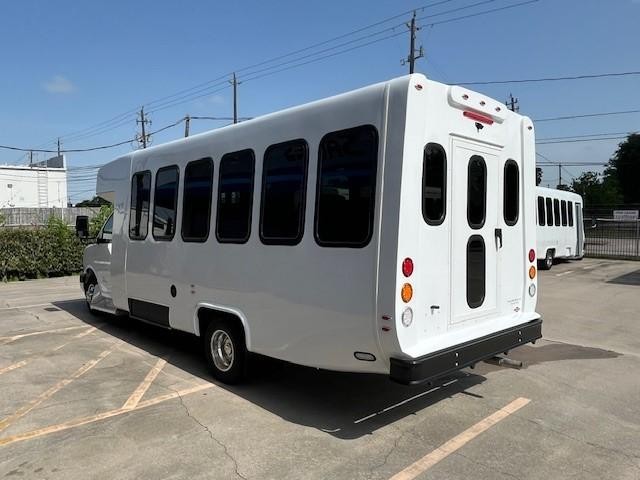

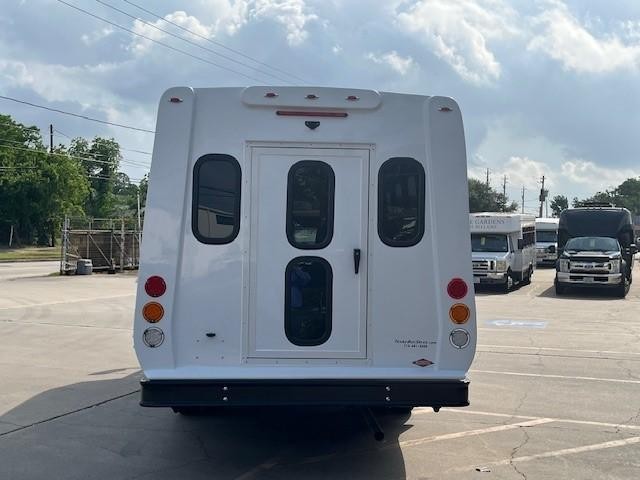

Rear door with upper & lower window
Window on each side of rear door
Rear door ajar buzzer, activates only when the bus is in gear

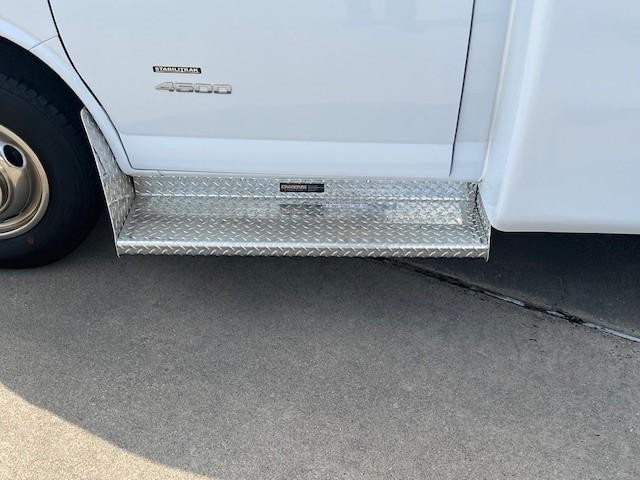

Driver running board, 10" diamond plate
Front & rear mud flaps
Color coordinated high slip résistance transit grade floor rubber, Caymen Gray Woodgrain
Cove molding, floor rubber that rolls up sidewall to seat rail

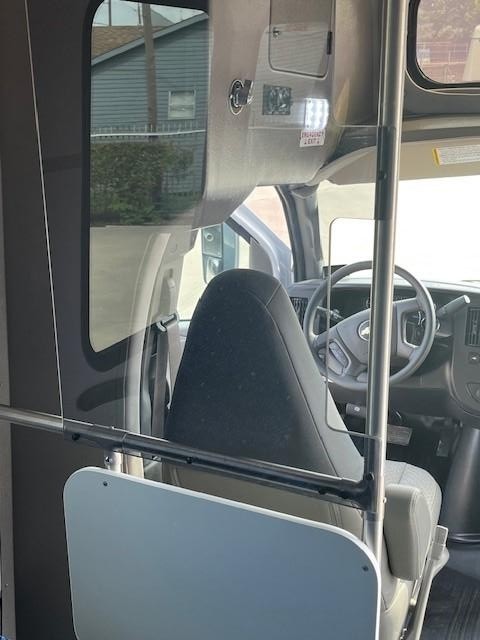

Plexiglas modesty panel, mounted above the driver’s seat
Modesty panel, mounted behind the driver’s seat
Right hand entry handrail

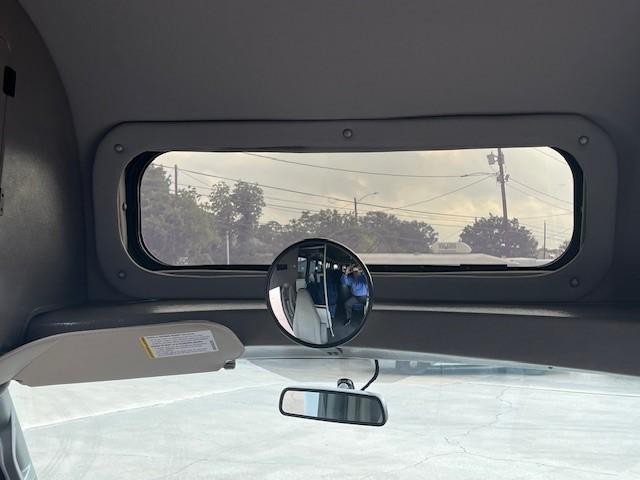

Driver’s passenger view mirror, 8" Round convex
Fabric covering on sidewalls and headliner, base level autocloth material

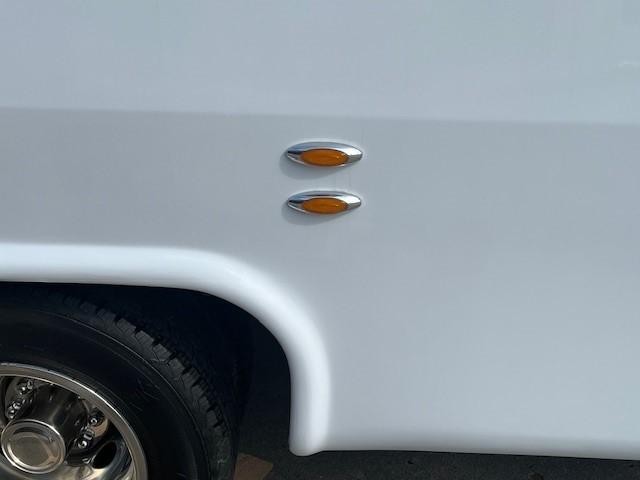

Light-emitting diode (LED) side marker lights

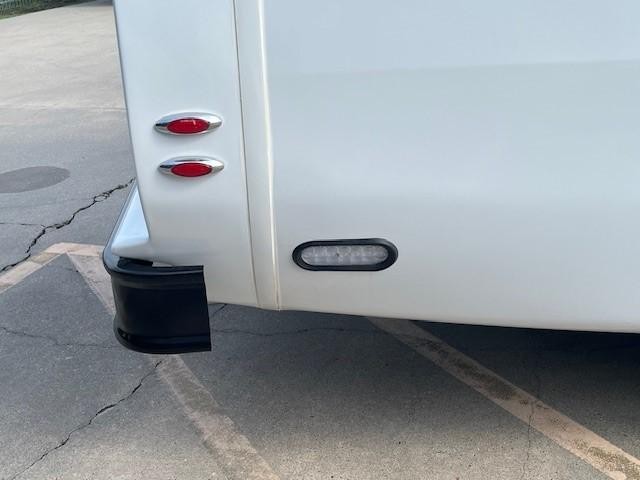

Light-emitting diode (LED) rear docking lights, skirt mount for backup
Dual light-emitting diode (LED) reading lights over passenger seats, per double passenger seat
Light-emitting diode (LED) Interior courtesy lights
Light-emitting diode (LED) center mount brake light
Light-emitting diode (LED) side directional turn lights
Light-emitting diode (LED) round stop/tail/turn lights

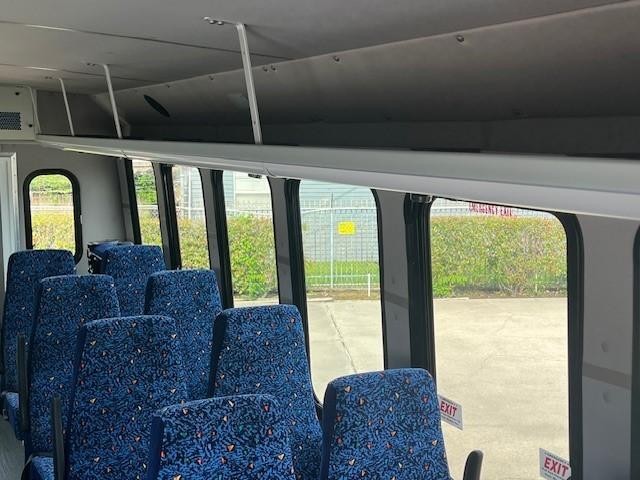

Passenger overhead storage compartments
Reverse alarm
Rosco vision backup sensor system
Rear View Camera located in rear view mirror
Fire extinguisher & Reflector kit
Stainless steel chrome wheel simulators
SEATS & ACCESSORIES:

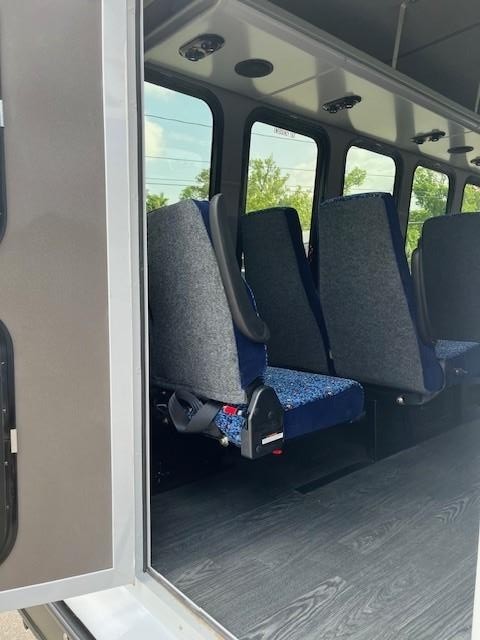

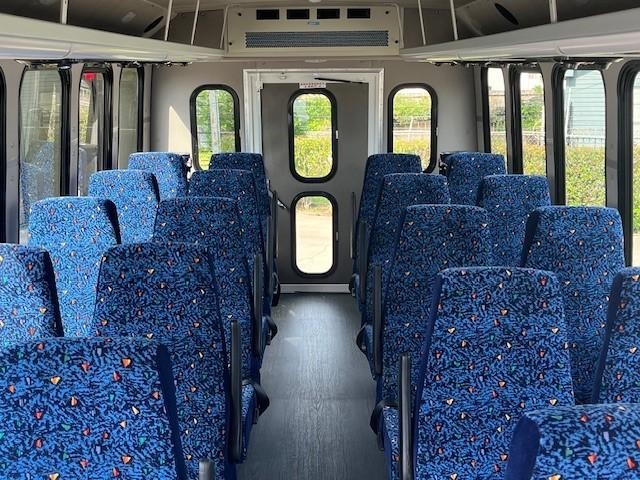

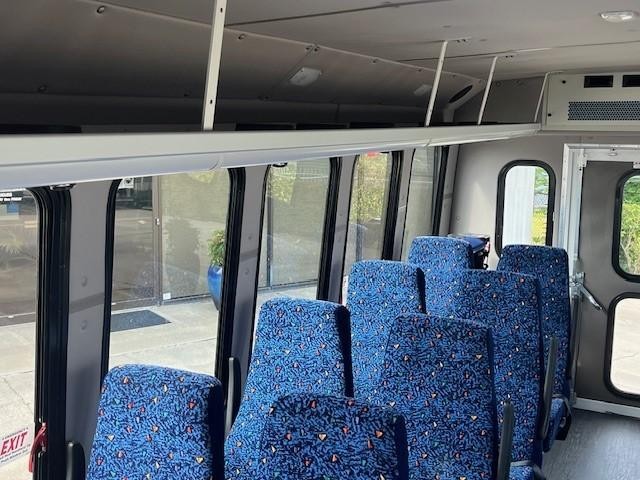

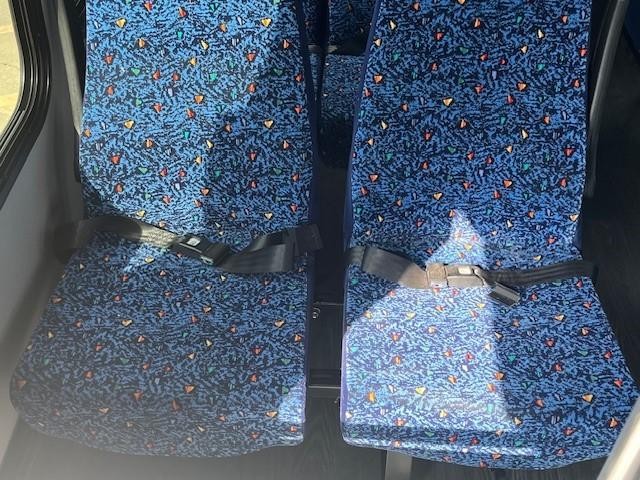

High back double passenger seats with:
> Kings Plush upholstery
> Non-retractable seatbelts
> Slim line, flip up armrests, aisle side
> Reclining seat backs, per passenger, except rear row
> Seat side sliders

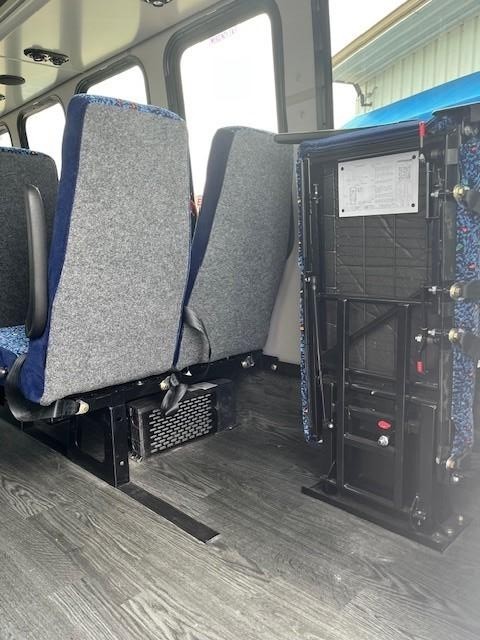

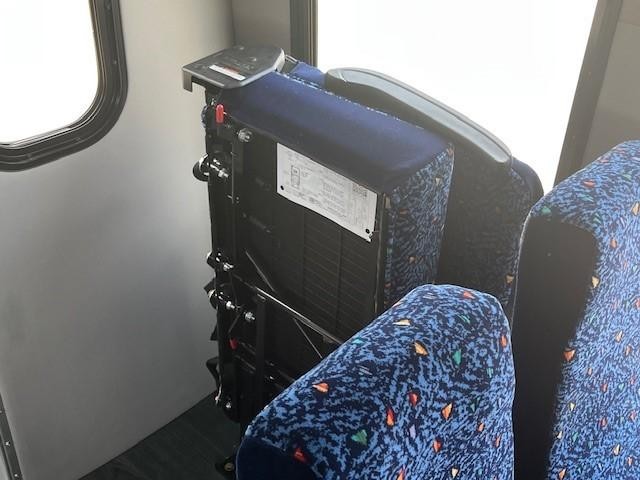

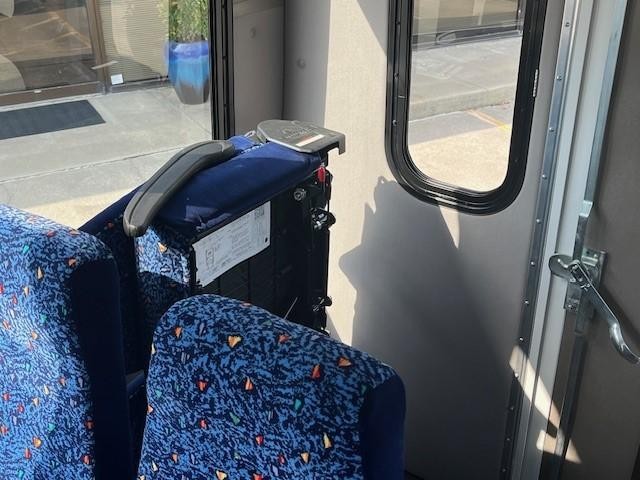

> 2 passenger foldaway seat *this option creates a convertible luggage area

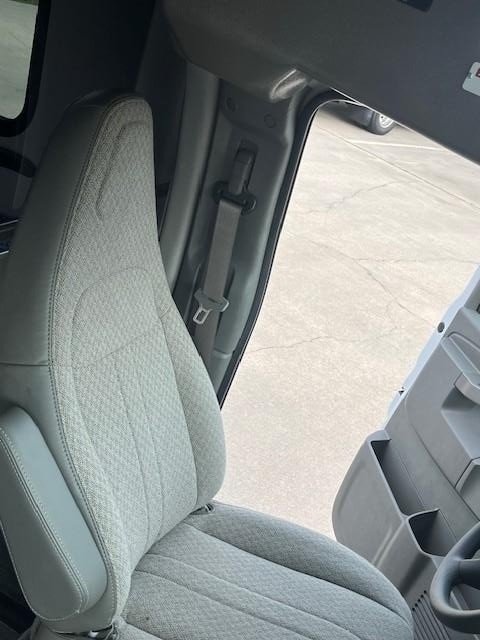

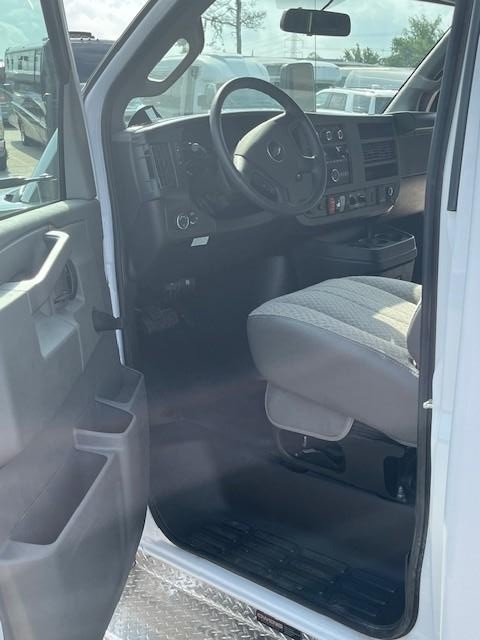

OEM driver high-back bucket, adjustable, includes head restraints
