CHASSIS:

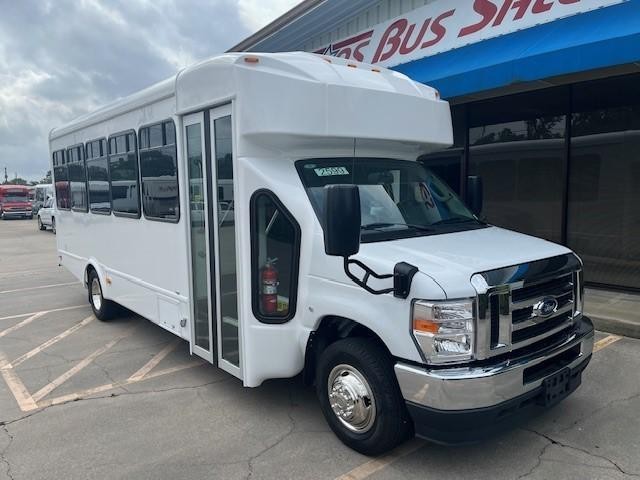

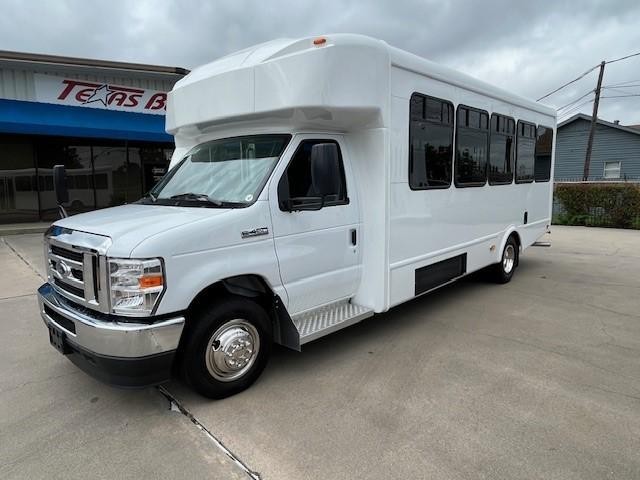

Ford Dual Rear Wheel Cutaway Chassis, 14,500 GVWR, 158" Wheelbase
7.3 liter, V8 gasoline engine, 350 horsepower @ 3.900 RPMs and 468 lb.-ft. of torque at 3,900 rpm
Electronic 6-Speed Automatic TorqShift™ transmission w/ overdrive & external cooler
Ford Factory Extra Heavy Duty 240 AMP Alternator
Premium electronic AM/FM stereo, digital clock, audio input jack (mounted in dash)
Tilt Steering Wheel & Cruise Control System
Windshield Wiper with Deluxe Intermittent Controls
Daytime running lamps

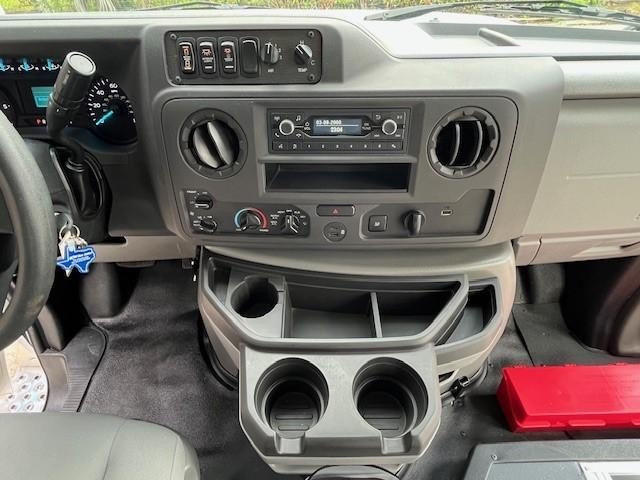

Engine console cover with dual bin stowage / 3 cup holders
STANDARD FEATURE HIGHLIGHTS:
"Starview" driver’s visibility window in front of entry door
Electric actuated 36" passenger entry door (32" clear width, 79" height)
36" wide x 36" high upper double T-Slider tempered safety glass windows with climate control tint
Contoured styled exterior driver mirrors w/ convex lens in a resin injection-molded housing
Light-emitting diode (LED) front & rear clearance & marker lamps & tail lights
Grey padded vinyl Cabliner and driver overhead panel

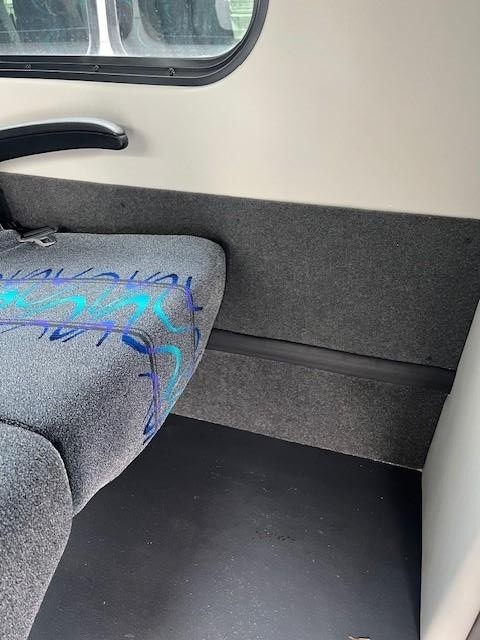

Charcoal color fabric Lower interior sidewall laminated to luan is installed under the seat track
White Step Nosing
93" interior width, 80" interior floor to ceiling height with standard floor (raised floor is 75")

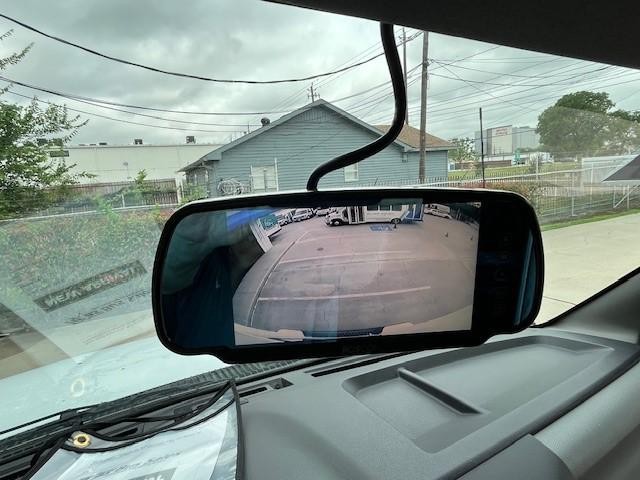

Rosco Rear View Camera with 7" color monitor located in rear view mirror
Left Hand Entry Vertical Grab Rail - 1¼"

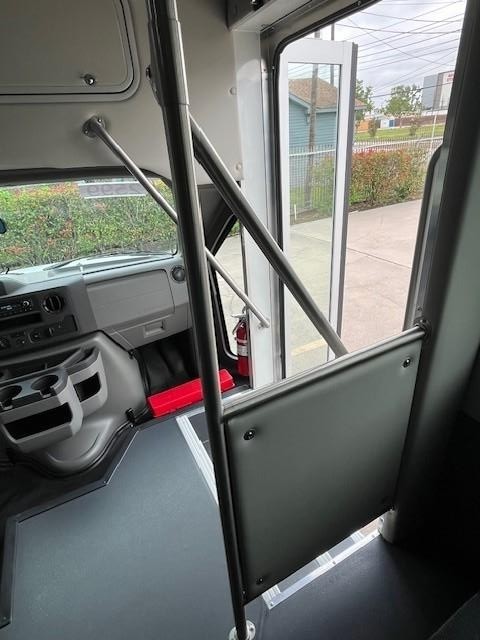

Stanchion and Modesty Panel at Entry Door
CHASSIS MODIFICATIONS:
Front Mud Flap

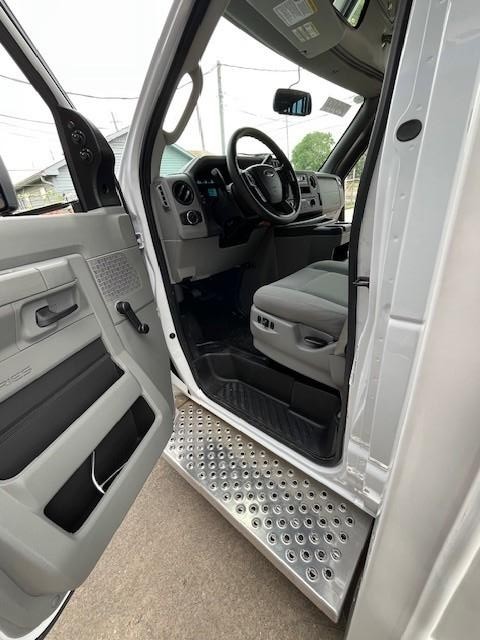

Heavy duty anti-slip aluminum running board on driver side

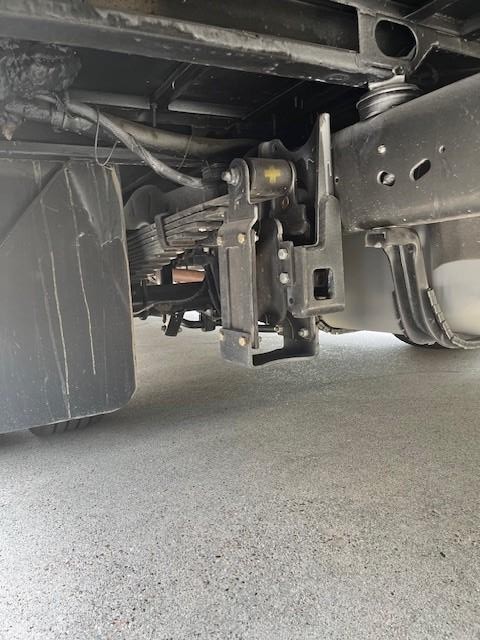

Enhanced rear suspension system (MOR-RYDE)

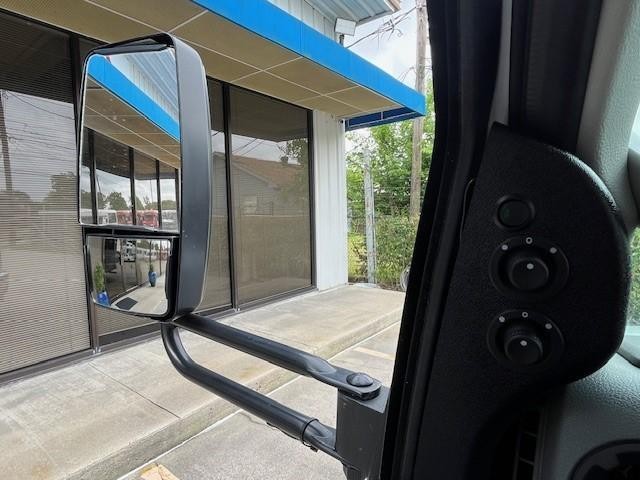

Remote controlled contoured styled exterior Rosco mirrors w/ convex lens
Stainless steel chrome wheel simulators
InterMotive high idle control
Chassis stretched to 190" wheelbase
AIR CONDITIONING & HEATING:
Rear Air Conditioning system rated at 70,000 BTU’s with:
Dual compressors, Chassis & an auxiliary 10 CID compressor
3 fan skirt mounted condenser unit rated at 76,000 BTU’s

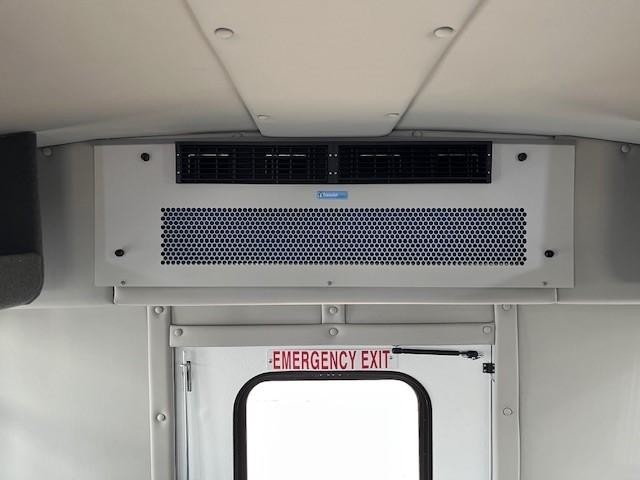

Rear evaporator rated at 52,000 BTU’s/1,330 CFM
Rear floor heater rated at 40,000 BTU’s
ELECTRICAL:
Door ajar buzzer on rear door

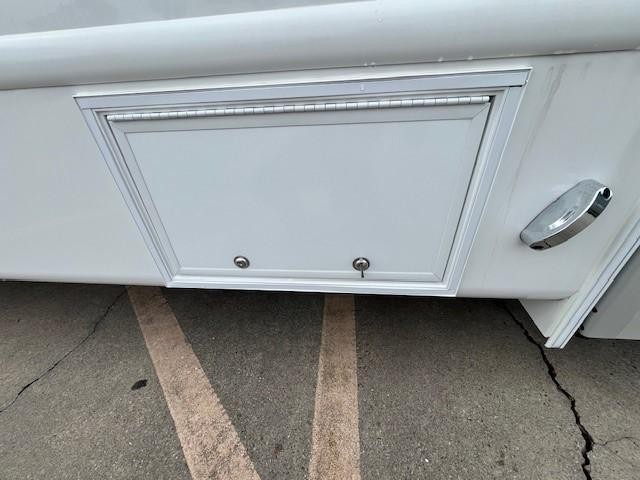

Exterior battery compartment w/ slideout tray (located in skirt for easy access)
Both batteries relocated from under the hood and frame rail into the slideout battery compartment
Light-emitting diode (LED) rear center mount brake light, Long & Narrow
Light-emitting diode (LED) light next to the passenger entry door
Light-emitting diode (LED) combination mid ship directional turn & marker lights

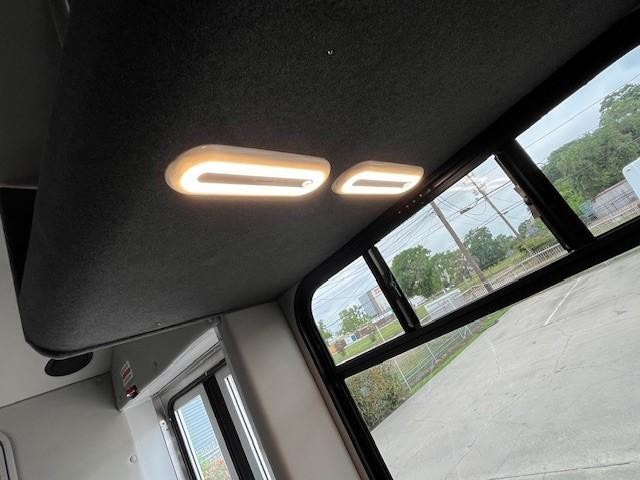

Dual light-emitting diode (LED) reading lights over passenger seats, per double passenger seat
Speakers with Wire to Chassis OEM Radio
GENERAL & SAFETY OPTIONS:
Grey Padded Vinyl Interior (walls and ceiling)
Color coordinated high slip résistance transit grade floor rubber, Gerflor-Anthracite (Grey) Graphite
Upgraded to 3/4" thick plywood sub-floor decking
Electric passenger entry door

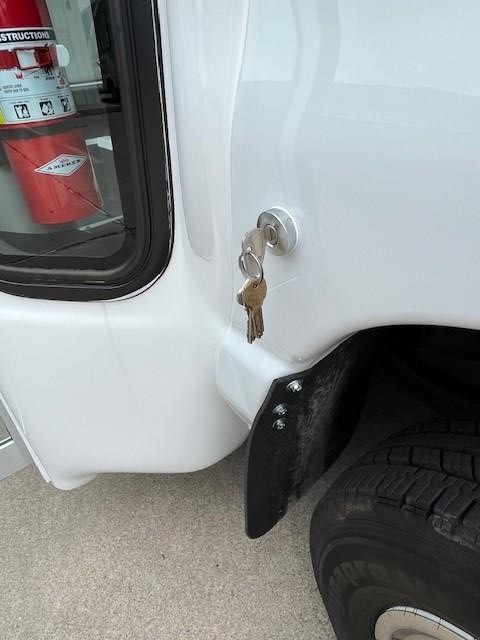

Kubota exterior key lock for passenger entry door

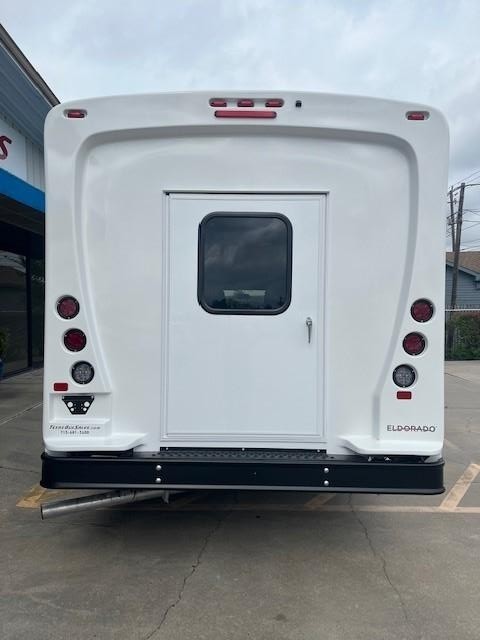

Rear door with upper window

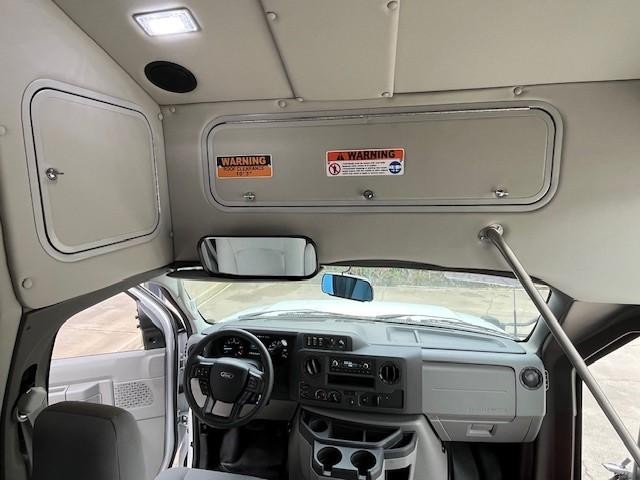

Driver’s storage compartment: over windshield
Passenger overhead storage compartments - Both Sides

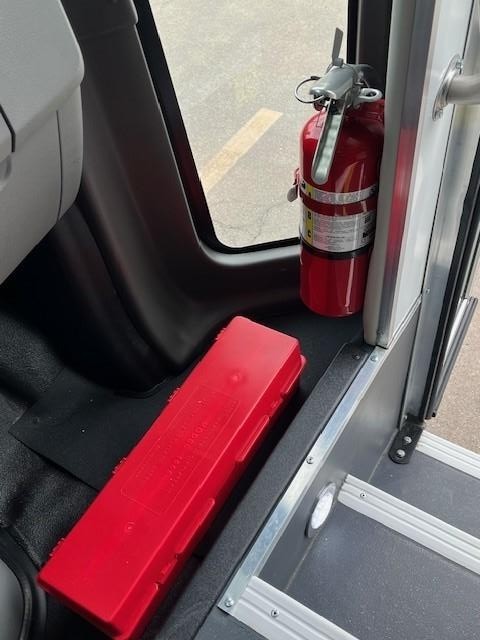

5 Lb Fire Extinguisher
Emergency Triangle Kit
Back-Up Alarm
Driver’s passenger view mirror, 6" X 16" Interior Rear Full View
Decal "Please Watch Your Step"
Decal Vehicle Height Sticker

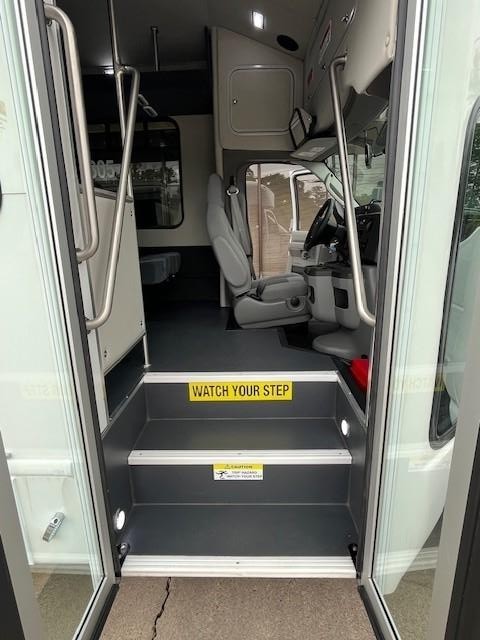

Vertical handrail assists, dual entry grabrails parallel to entrance door steps
SEATS & ACCESSORIES:

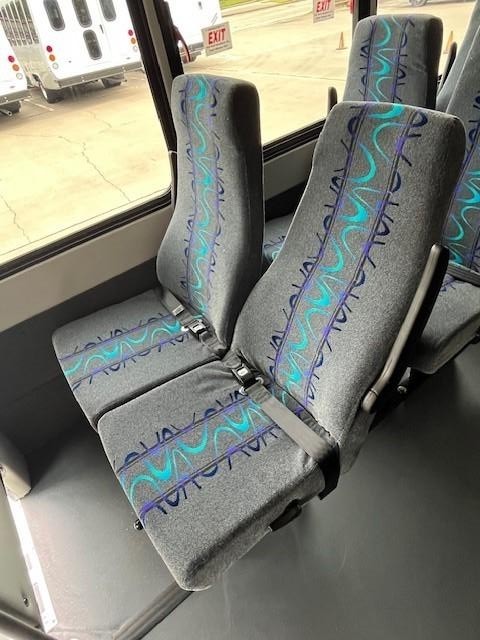

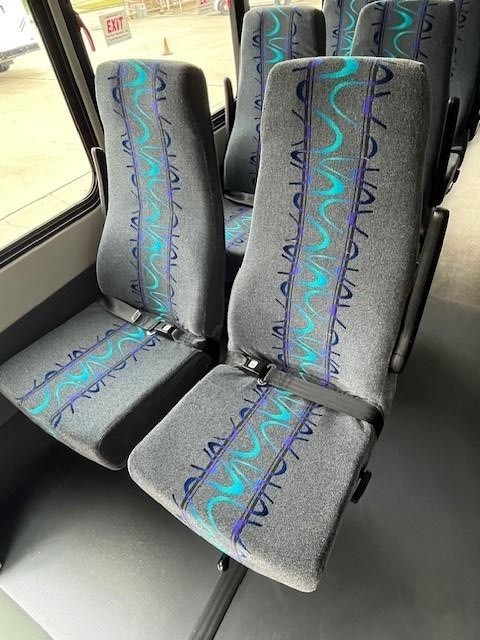

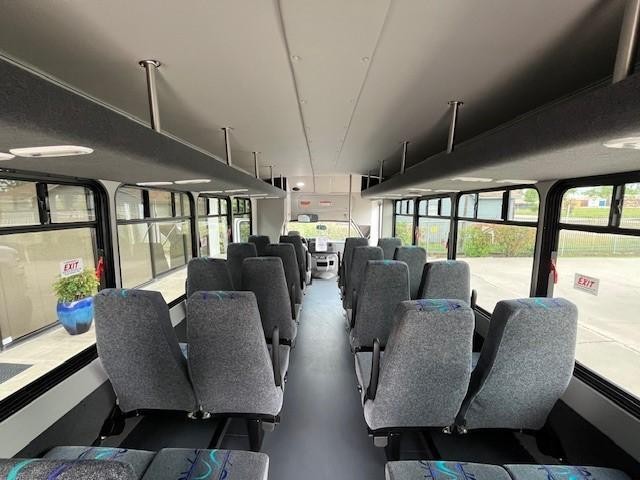

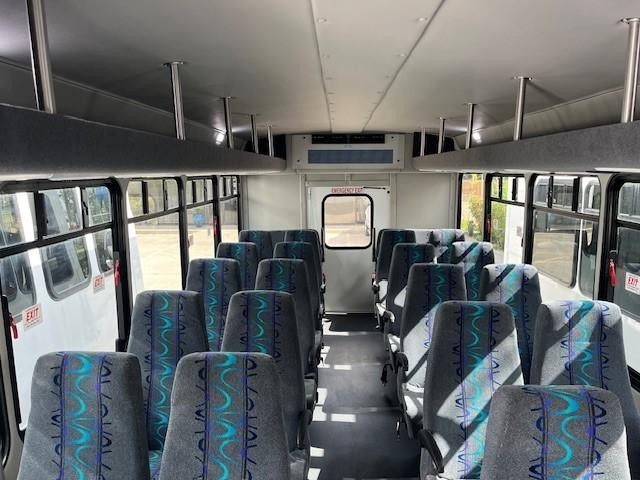

High back double passenger seats with:
> Commercial grade vinyl, Level 4 Ice Pinstripe
> Slim line, flip up armrests, aisle & window side
> Reclining seat backs, per passenger, except rear row
> Seat side sliders
> Seat belts, retractors, in lieu of non-retractable seatbelts

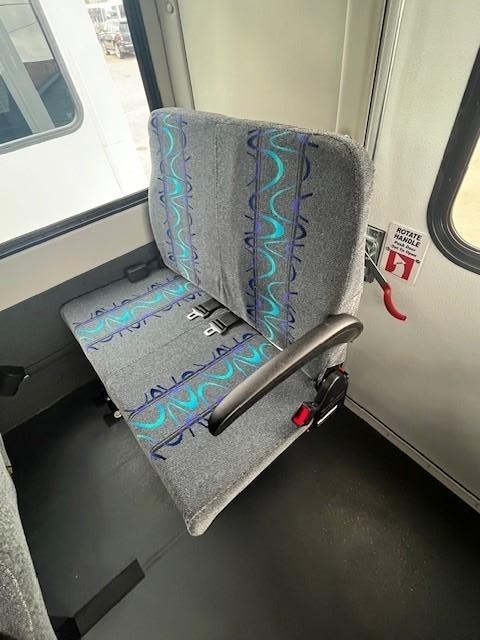

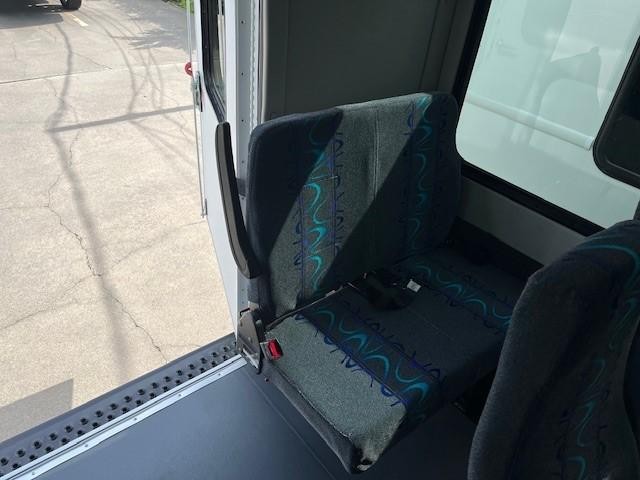

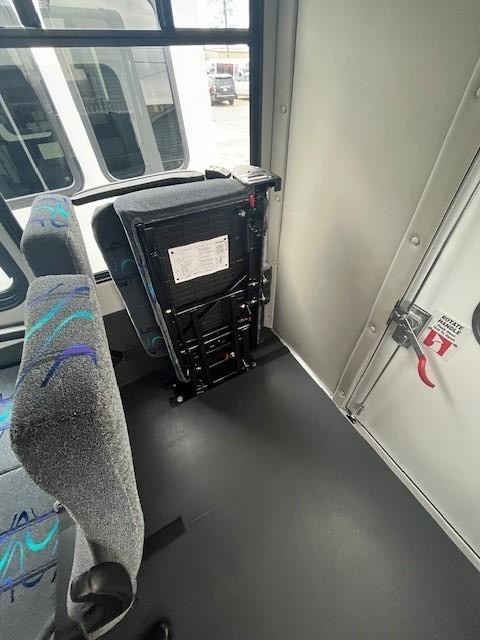

> 2 passenger foldaway seat *this option creates a convertible luggage area.

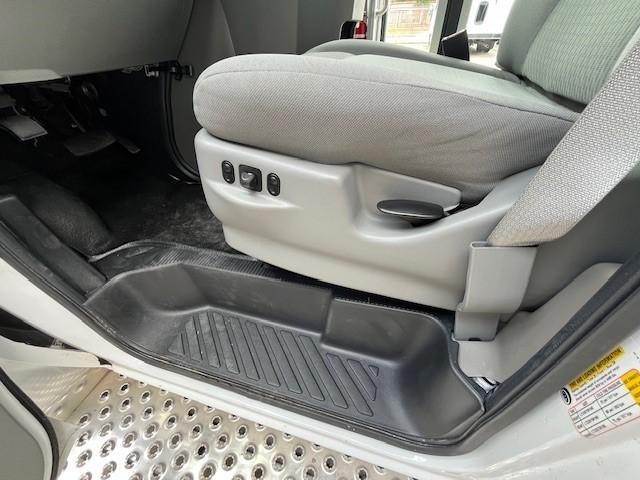

High back reclining driver’s power seat with right side armrest
