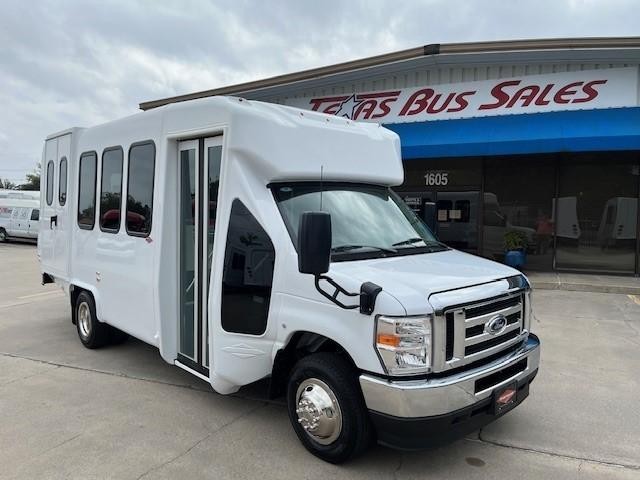

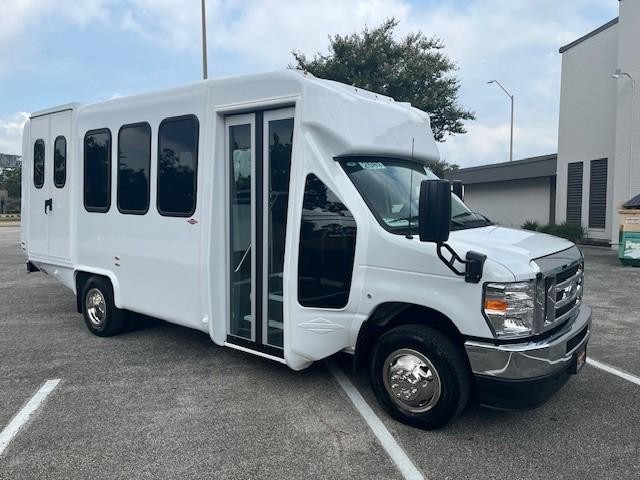

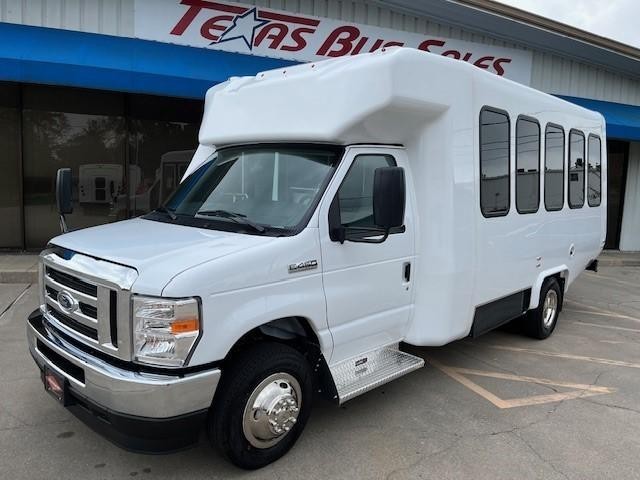

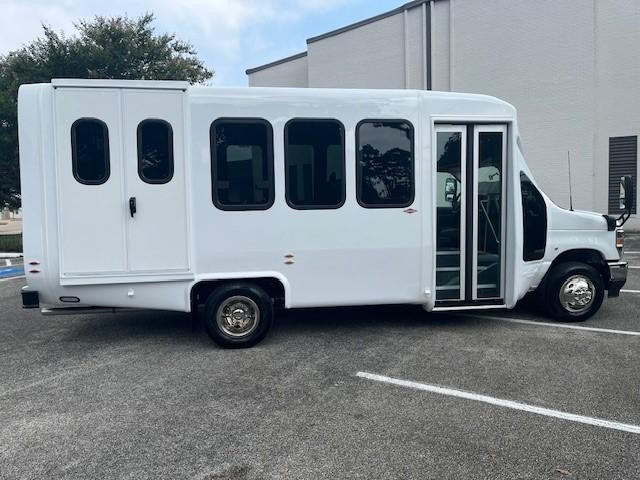

New 2026 Diamond Coach vip 2200P/T in Houston, TX

DIAMOND VIP 2200PT-8 AMBULATORY & 4 WHEELCHAIR POSITIONS PASSENGERS
TBS STOCK # 2616 - VIN # 1FDFE4FN3TDD22257 - SERIAL # 00018138

CHASSIS:

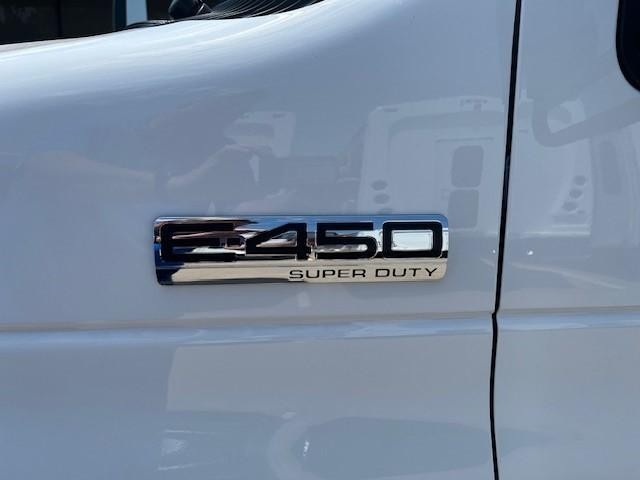

Ford E-450 Super Duty Dual Rear Wheel Cutaway Chassis, 12,500 GVWR, 158" Wheelbase
7.3 liter, V8 gasoline engine, 350 horsepower @ 3.900 RPMs and 468 lb.-ft. of torque at 3,900 rpm
Electronic 6-Speed Automatic TorqShift™ transmission w/ overdrive & external cooler
Ford Factory Extra Heavy Duty 240 AMP Alternator
DIAMOND BODY STANDARD FEATURES:
Vacuum-Cured composite body, Impact resistant & non-corrosive
Oxford white exterior w/ durable gel coat finish
Superior insulation within the laminated sidewalls
24" wide x 36" high tempered safety glass windows with climate control tint, (positioned at each row)

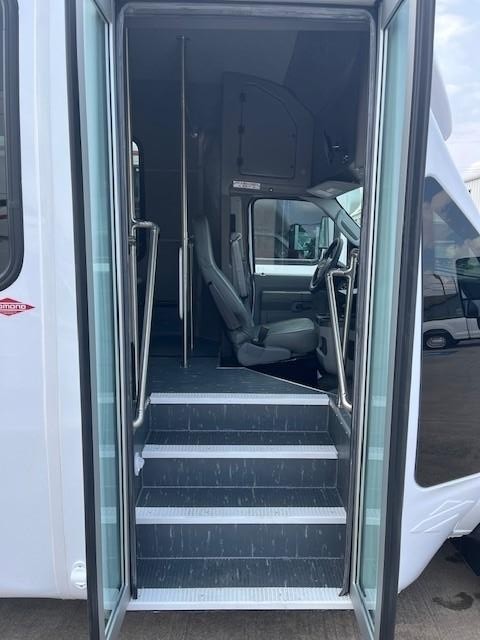

Electrically operated passenger entry door with full length glass (32" clear width, 80" height)

AIR CONDITIONING & HEATING:
Rear Air Conditioning system rated at 70,000 BTU’s with:
+ Dual compressors, Chassis supplied plus an auxiliary 10 CID compressor dedicated to rear system
+ 3 fan skirt mounted condenser unit rated at 76,000 BTU’s
+ Rear in-wall evaporator rated at 52,000 BTU’s/1,330 CFM
Rear floor heater rated at 65,000 BTU’s

GENERAL FEATURES:
Flat floor with no wheel wells, this option allows unrestricted w/c locations
Timbren Suspension Enhancement, This option automatically adjust to variable loads and road conditions

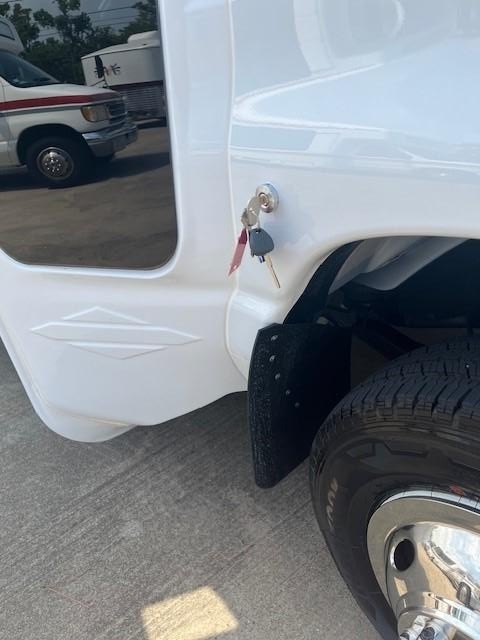

Kubota exterior key lock for passenger entry door

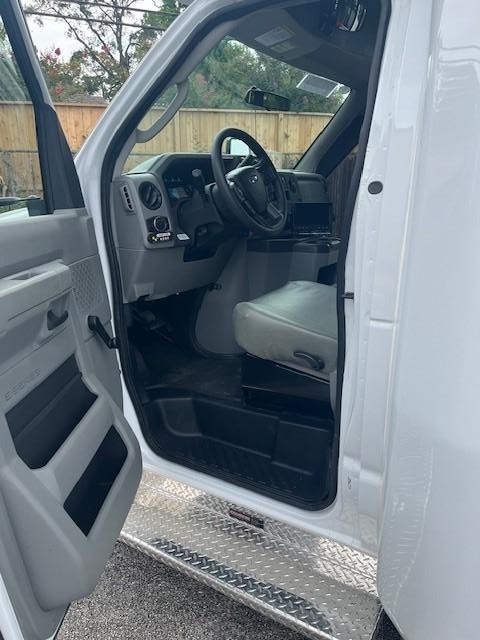

Driver’s 10 inch wide running board
Front mud flaps
Color coordinated gray high slip résistance transit grade floor rubber, In lieu of Black
Cove molding, floor rubber that rolls up sidewall to seat rail
Modesty panel, mounted behind the driver’s seat
Right-hand additional entry handrail
Driver’s passenger view mirror (6"x9" convex)
White Standee line

PARATRANSIT:
Heavy duty double outward opening wheelchair lift doors

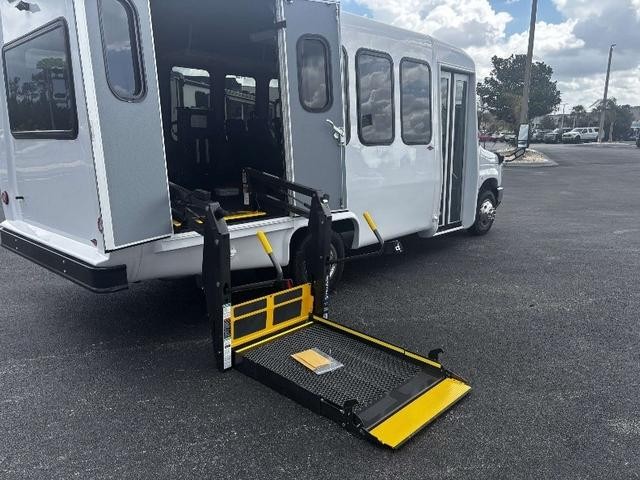

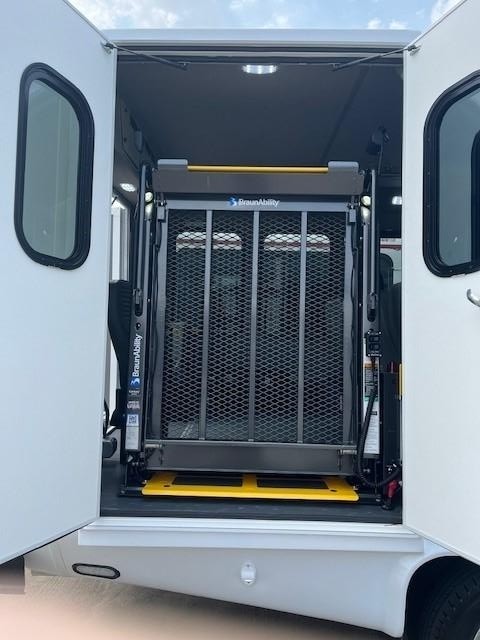

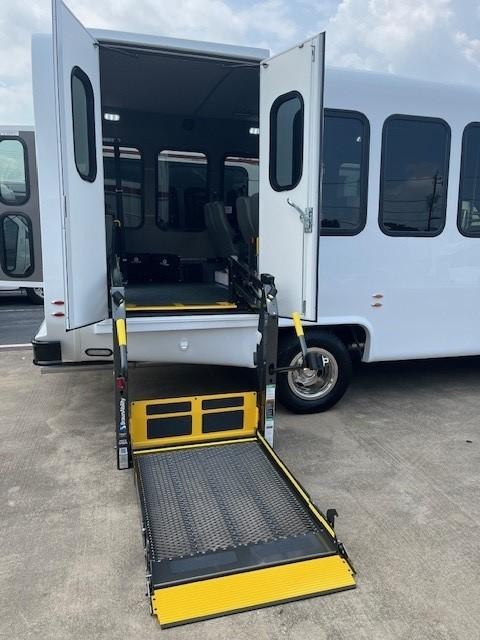

Fully automatic Braun Century wheelchair lift w/ 34" wide platform

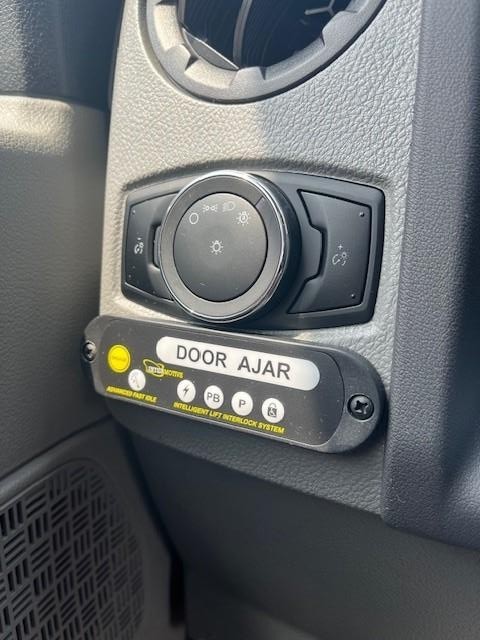

Transmission interlock with Fast Idle module
Skirt mounted light which illuminates the ground below the wheelchair lift area
Exterior passenger entry door light

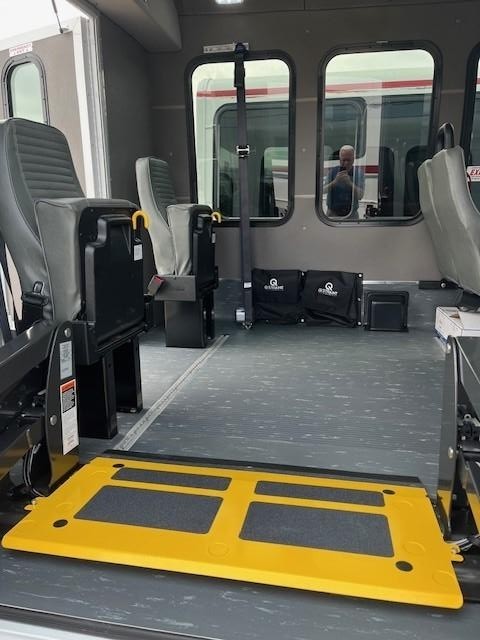

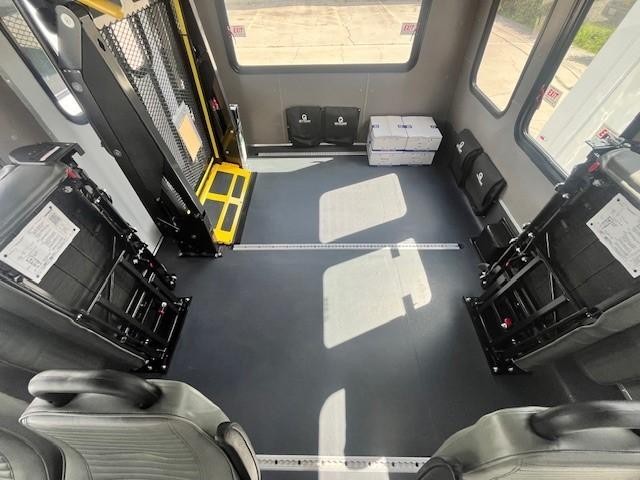

Four (4) Q-Straint four (4) point wheelchair securement tie downs
Track storage on side wall tracks for wheelchair securement tie down belts

ELECTRICAL & SAFETY FEATURES:
Reverse alarm
Rear View Camera with color monitor, windshield mounted in the Driver’s day/night mirror
Fire extinguisher, & reflector kit

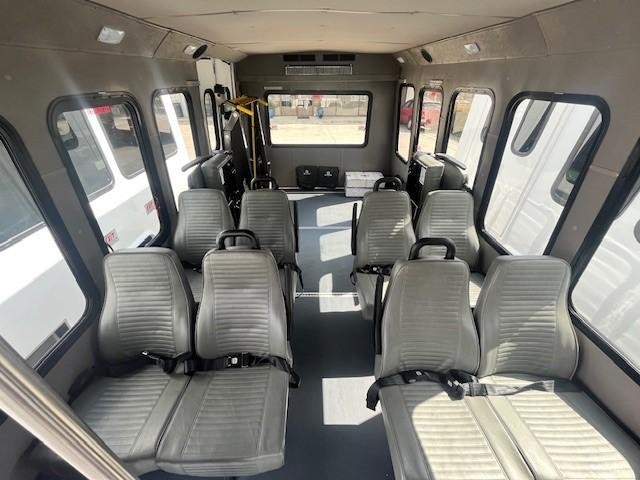

SEATS & ACCESSORIES:

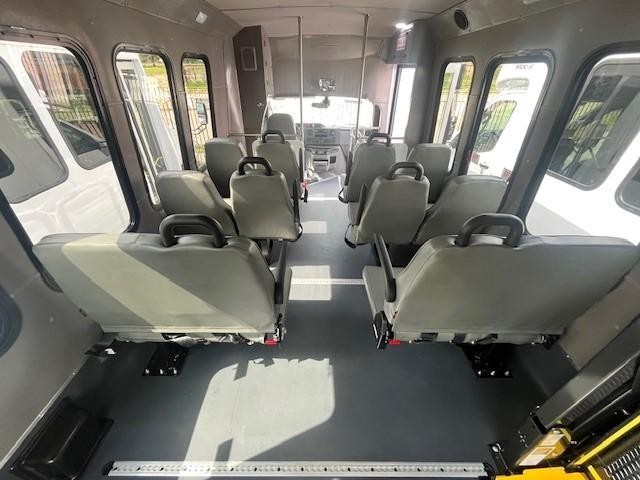

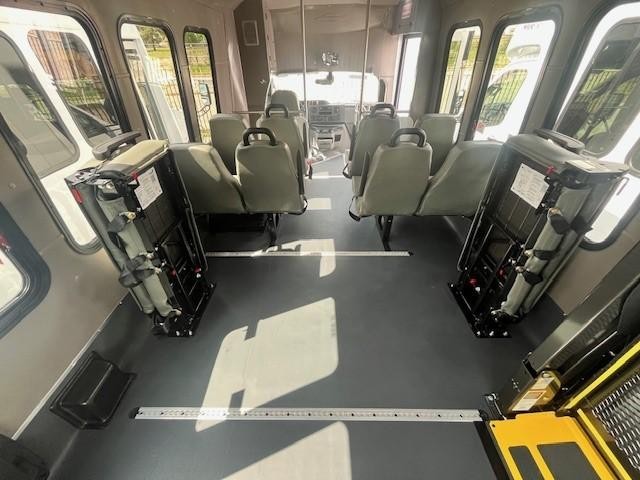

Mid back passenger seats with:
+ Commercial grade vinyl, Level 1 - Gray
+ Non-retractable seatbelts
+ Slim line, flip up armrests, aisle side
+ Padded grab handles, aisle side seats
Two (2) double passenger foldaway seats installed over rear w/c positions
High back reclining driver’s seat w/ armrest

EXTERIOR:
Bright white exterior
