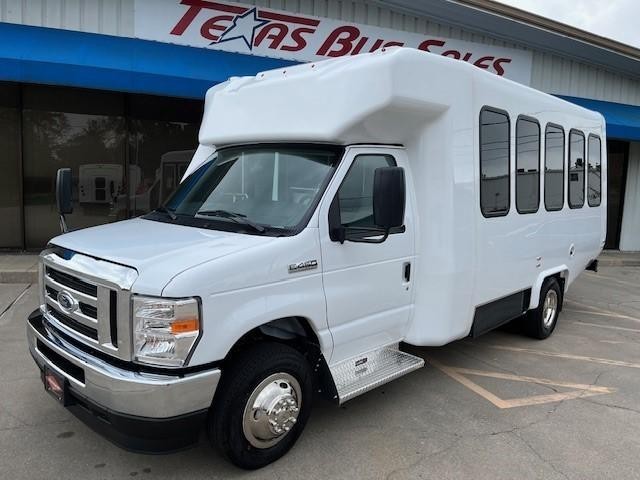

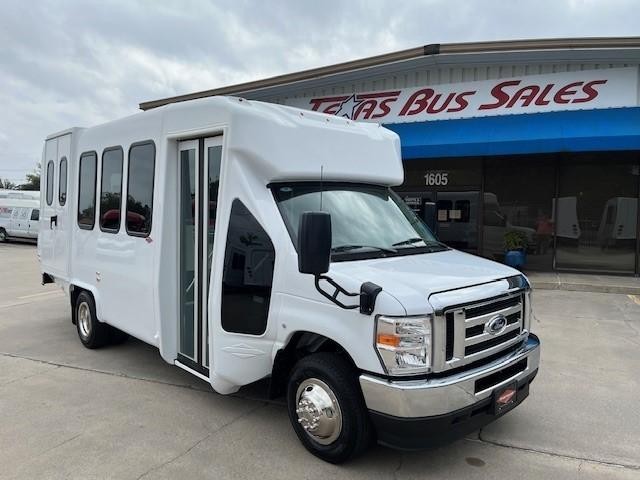

DIAMOND VIP 2200-14 AMBULATORY & 2 WHEELCHAIR POSITIONS PASSENGERS
TBS STOCK # 2615 - VIN # 1FDFE4FN0TDD22409 - SERIAL # 00018131
CHASSIS:

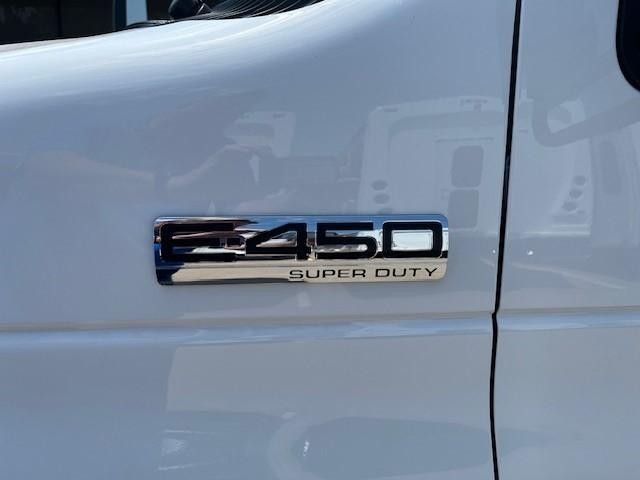

2026 Ford E-450 Super Duty Dual Rear Wheel Cutaway Chassis, 14,500 GVWR, 158" Wheelbase
7.3 liter, V8 gasoline engine, 350 horsepower @ 3.900 RPMs and 468 lb.-ft. of torque at 3,900 rpm
Electronic 6-Speed Automatic TorqShift™ transmission w/ overdrive & external cooler
Ford Factory Extra Heavy Duty 240 AMP Alternator
Dual batteries, Extra Heavy Duty 78 Amp Hour
Heavy Duty Industrial Style Engine Oil Cooler and Transmission Oil Cooler
Deluxe Sound Dampening and Temperature Resistant Insulation Package
Dual Rear Wheels for Passenger Safety
Solid axle and rear stabilizer bar
Front and rear shocks - Heavy-duty gas-pressurized
Brakes - Power 4-wheel disc anti-lock, with traction control
Steering - Recirculating ball, power-assisted
Tires LT225/75R x 16E BSW A/S - DRW
Upgrade Package: (front chrome bumper, chrome grille, aerodynamic ultra- bright halogen headlights)
In dash 17,000 BTU a/c & 26,000 BTU heat
Premium electronic AM/FM stereo, digital clock, audio input jack (mounted in dash)

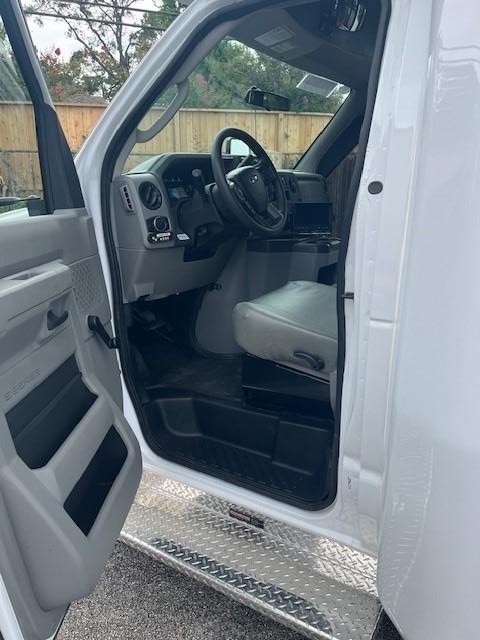

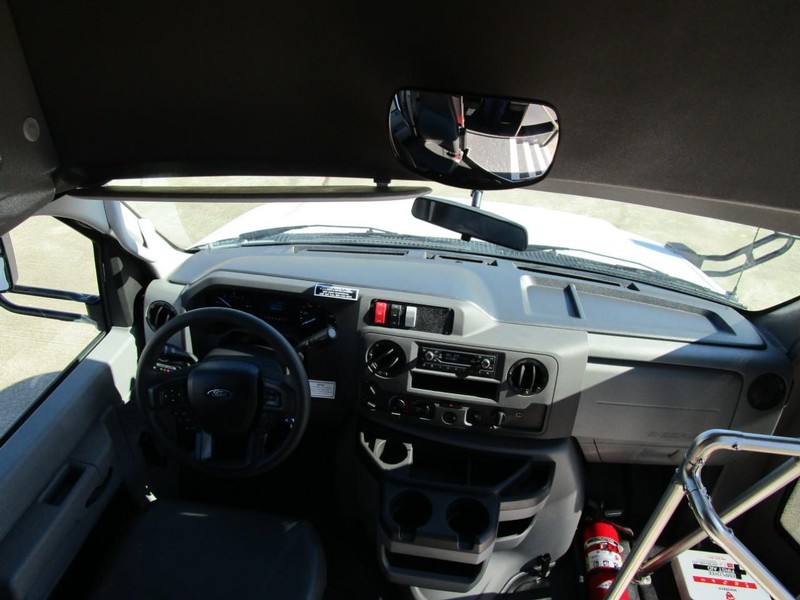

Tilt Steering Wheel for Driver Comfort
Driver Friendly Ford Factory Cruise Control System
Windshield Wiper with Deluxe Intermittent Controls
Driver Friendly Power Steering
Conventional instrument cluster with Tachometer
Daytime running lamps
Cab floor covering vinyl, black
Engine console cover with dual bin stowage / 3 cup holders
PowerPoints - Dual 12-volt in instrument panel, single in glove box
DIAMOND BODY STANDARD FEATURES:
Vacuum-Cured composite body, Impact resistant & non-corrosive
Oxford white exterior w/ durable gel coat finish
Superior insulation within the laminated sidewalls
24" wide x 36" high tempered safety glass windows with climate control tint, (positioned at each row)
Electrically operated passenger entry door with full length glass (32" clear width, 80" height)
Non-corrosive composite passenger entry stepwell & wheel wells
Seat track mounted in floors and sidewalls for adjustable passenger seats
5/8" sealed & undercoated exterior grade plywood floor

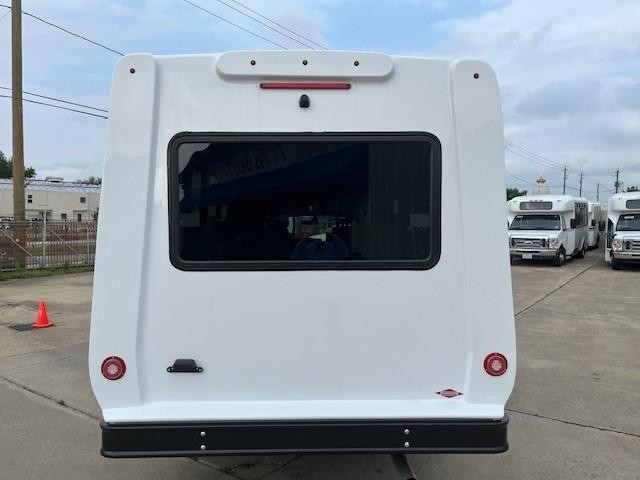

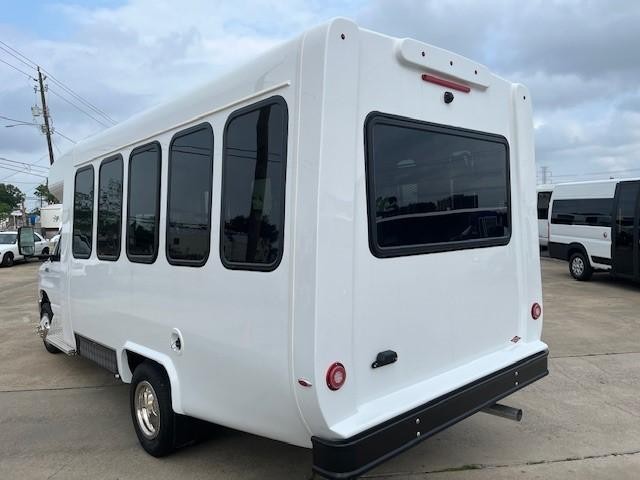

Black powder coated steel rear bumper
Contoured styled exterior driver mirrors w/ convex lens in a resin injection-molded housing.
Light Emitting Diode (LED) exterior passenger entry door light
Light Emitting Diode (LED) sealed lighting; stop, tail, and turn signal lights with reverse lights
Light Emitting Diode (LED) armored shielded clearance lights
Durable ABS interior walls, driver’s area w/ fabric ceiling
Black transit grade floor rubber w/ slip resistant ribbed aisle

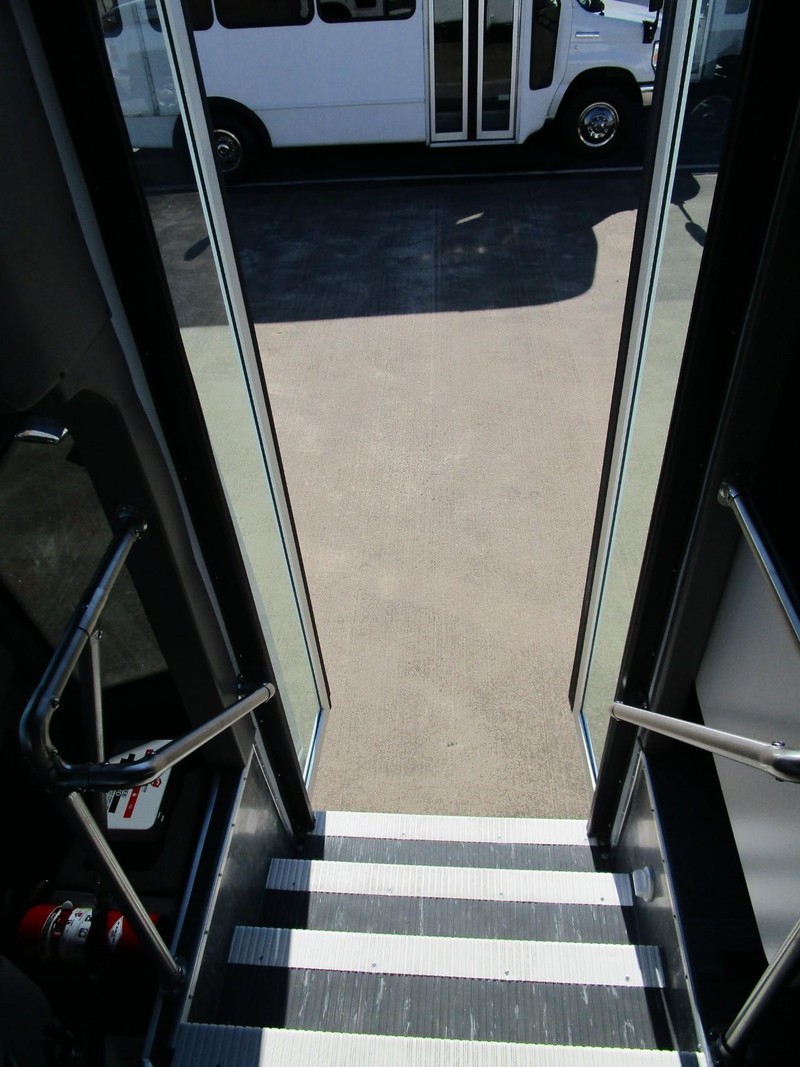

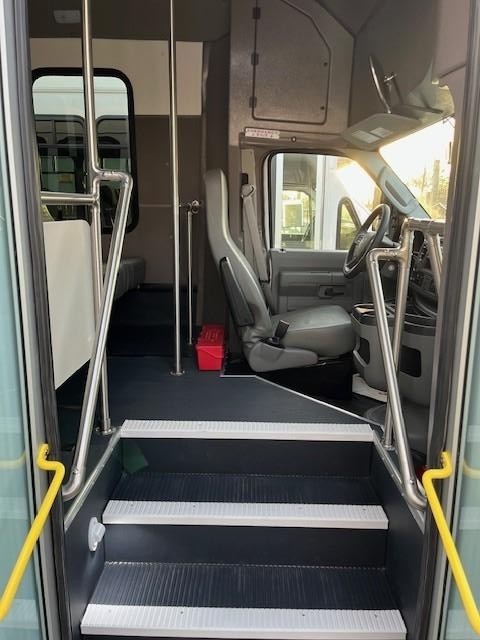

White step safety nosing on entry steps
Easy access driver control console w/ rocker stamped switches, located for safety
Electrical panel protected with automotive type fuses, Colored coded wiring
Interior LED courtesy lights
Driver’s map light

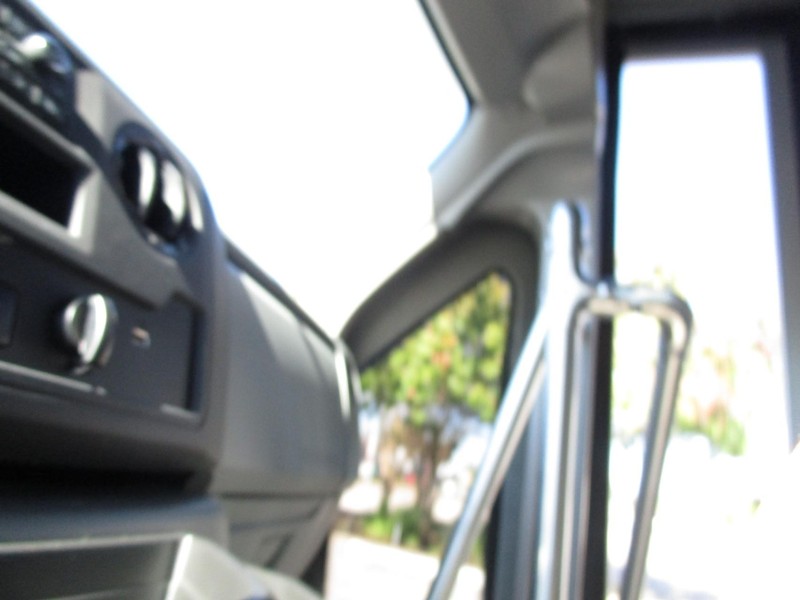

Left hand entry stanchion with modesty panel and left entry assist rail, stainless
AIR CONDITIONING & HEATING:
Rear Air Conditioning system rated at 70,000 BTU’s with:
+ Dual compressors, Chassis supplied plus an auxiliary 10 CID compressor dedicated to rear system
+ 3 fan skirt mounted condenser unit rated at 76,000 BTU’s
+ Rear evaporator rated at 52,000 BTU’s/1,330 CFM
Rear floor heater rated at 65,000 BTU’s
GENERAL FEATURES:
Flat floor with no wheel wells, this option allows unrestricted w/c locations
Timbren Suspension Enhancement, This option automatically adjust to variable loads and road conditions

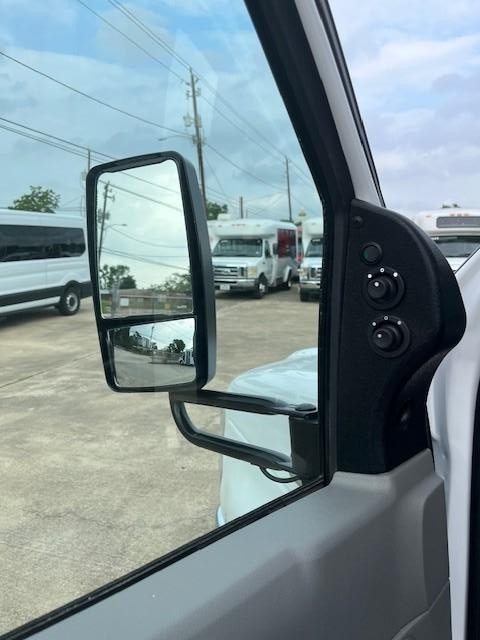

Remote controlled contoured styled exterior Rosco mirrors w/ convex lens

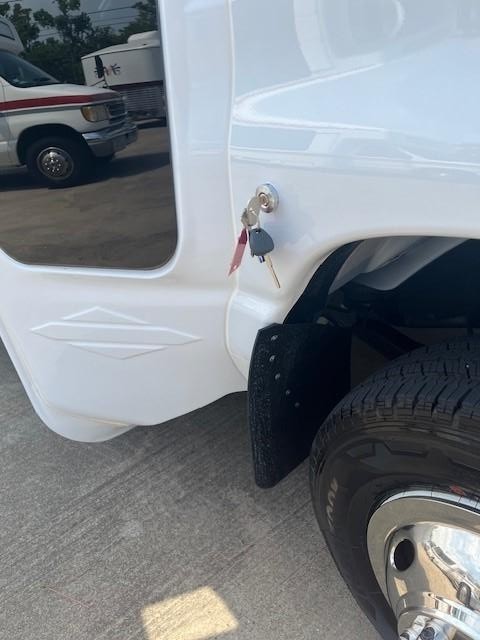

Kubota exterior key lock for passenger entry door
Driver’s 10 inch wide running board
Front mud flaps
Drip molding over passenger windows
Right-hand additional entry handrail
Driver’s passenger view mirror (6"x9" convex)
Stainless steel chrome wheel simulators
PARATRANSIT:
Heavy duty double outward opening wheelchair lift doors

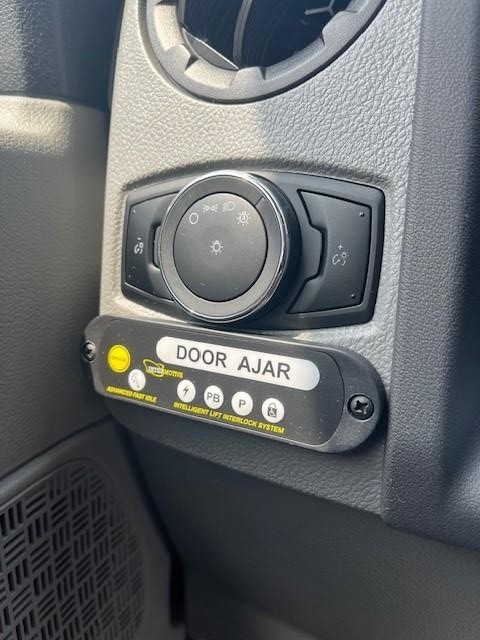

Wheelchair lift door ajar buzzer, activates only when the bus park brake is applied

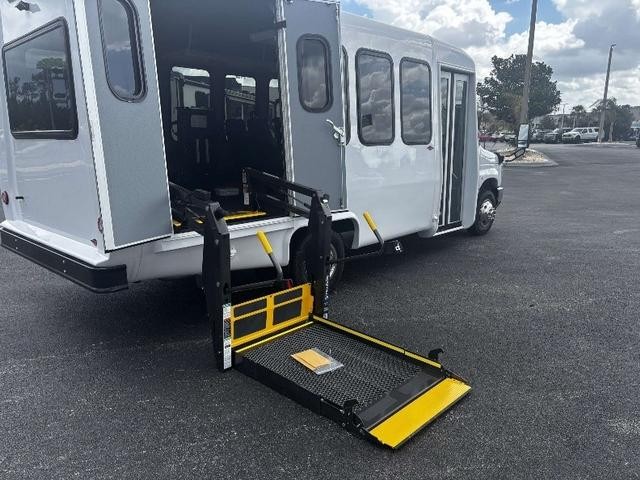

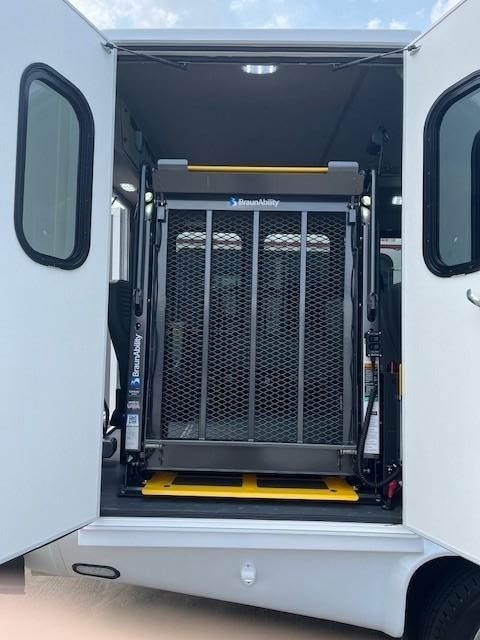

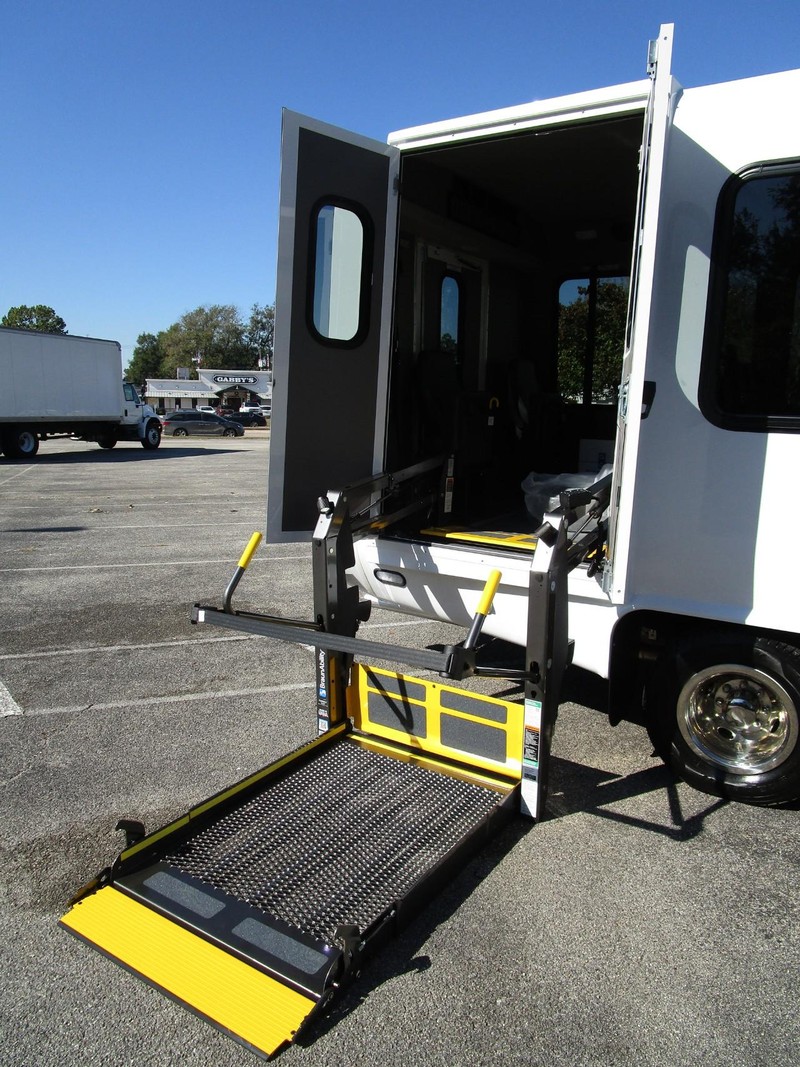

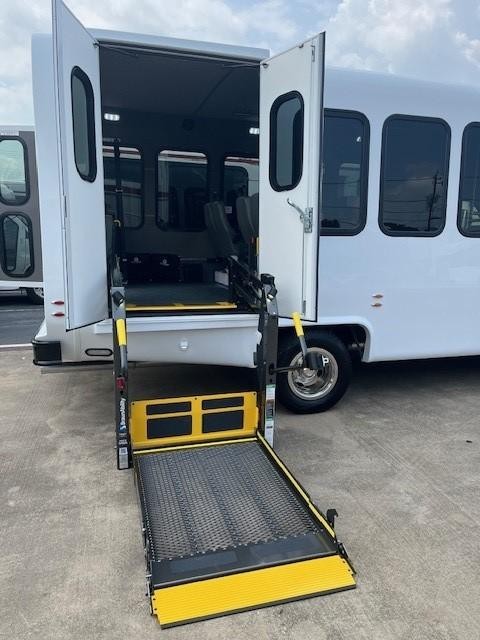

Fully automatic Braun Century wheelchair lift w/ 34" wide platform
Transmission interlock with Fast Idle module
Skirt mounted light which illuminates the ground below the wheelchair lift area
Exterior passenger entry door light
Two (2) Sure-Loc Titan four (4) point wheelchair securement tie downs
Belt storage track, on the sidewall in the wheelchair area
ELECTRICAL & SAFETY FEATURES:
Reverse alarm
Rear View Camera with 7" color monitor, mounted on the engine cover
Fire extinguisher, & reflector kit
SEATS & ACCESSORIES:

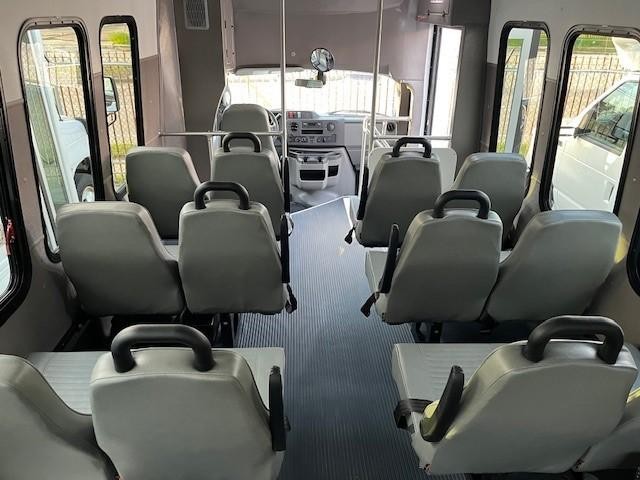

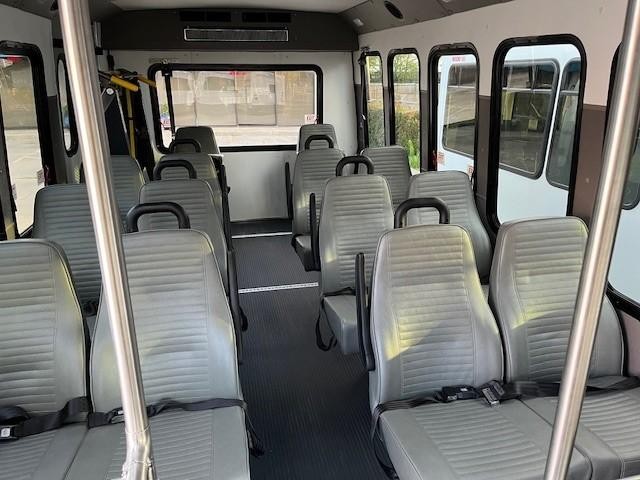

Mid back passenger seats with:
+ Commercial grade vinyl, Level 1 - Newport Ash Gray Vinyl #686
+ Seatbelts
+ Slim line, flip up armrests, aisle side
+ Padded grab handles, aisle side seats

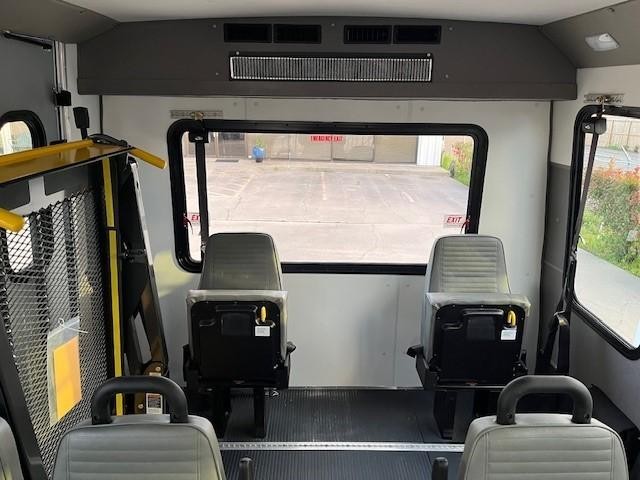

Two Single passenger flip seats installed over rear w/c positions
High back reclining driver’s seat w/ armrest
EXTERIOR:
Bright white exterior
